Scope of the Project
Manufacturing, testing and delivery of Slide Gate to Italy with requested documentation.

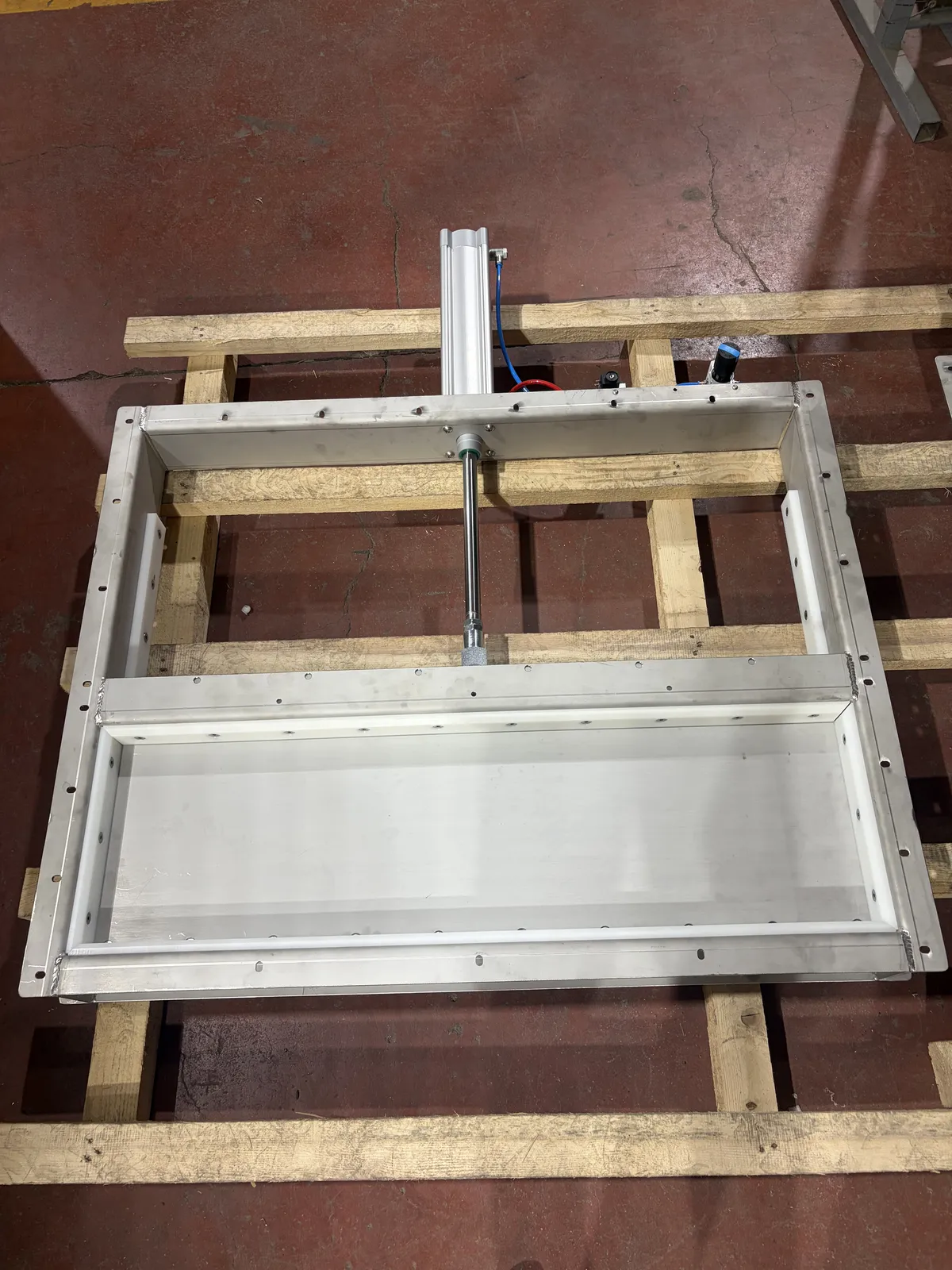

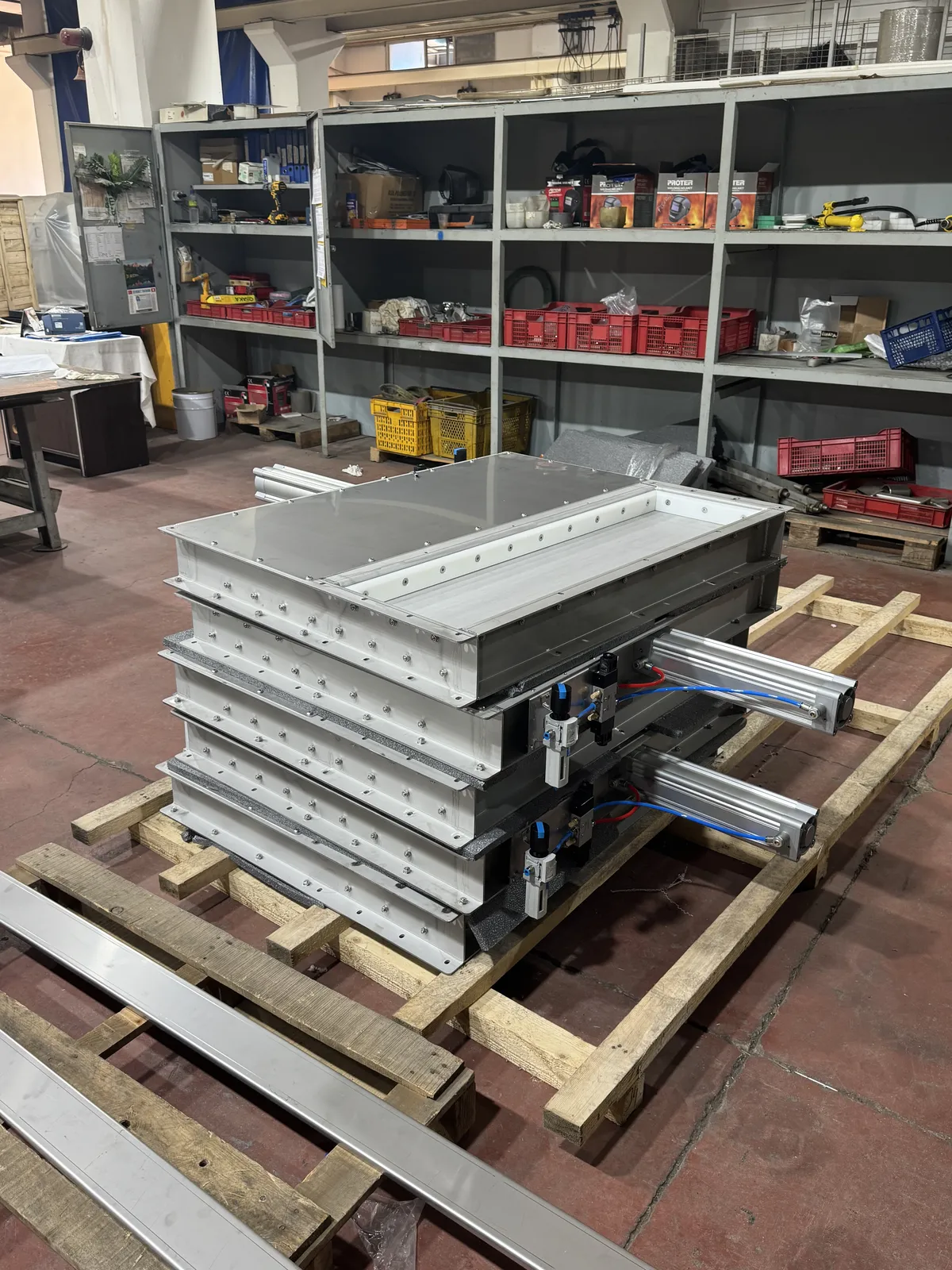

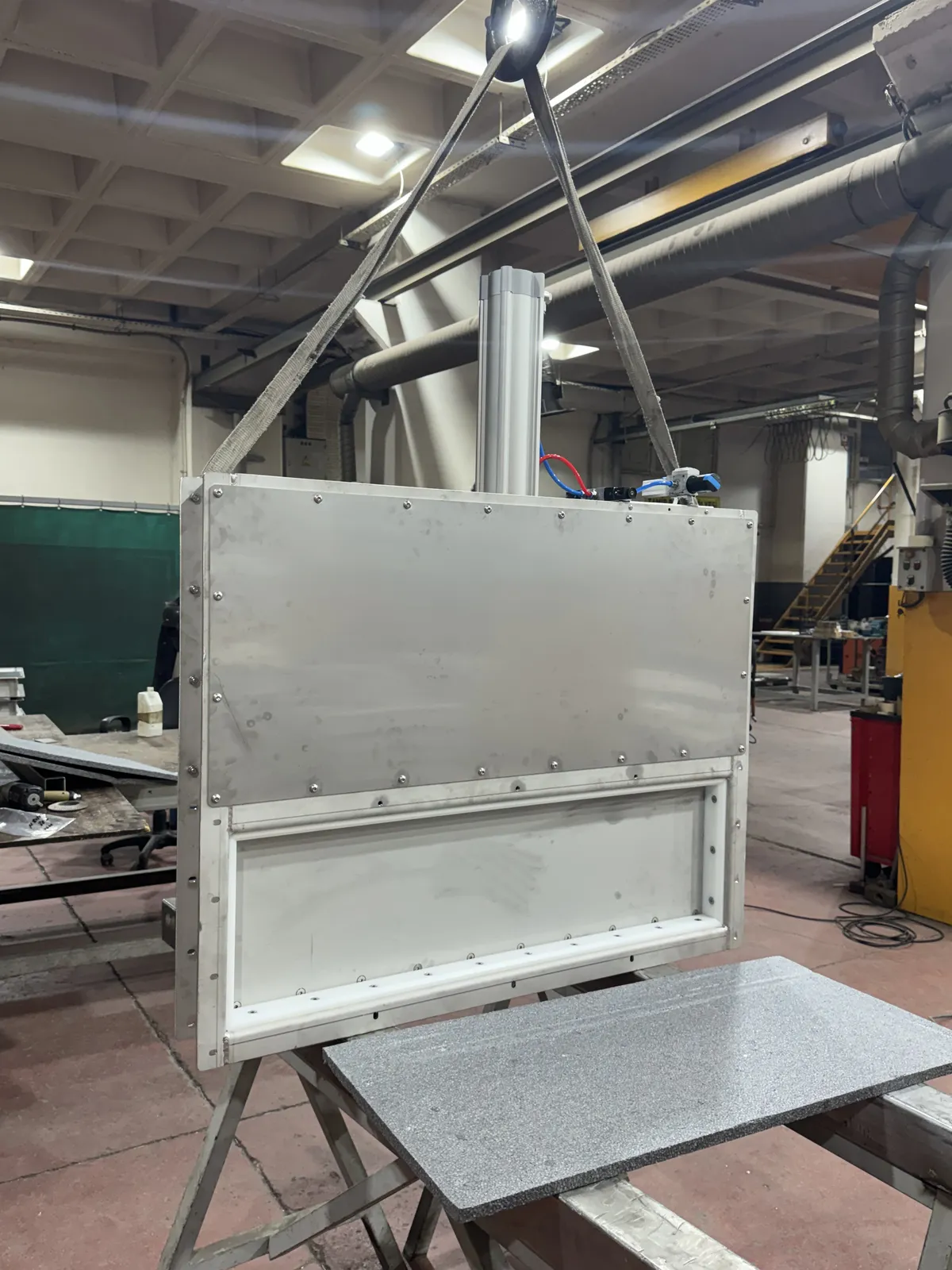

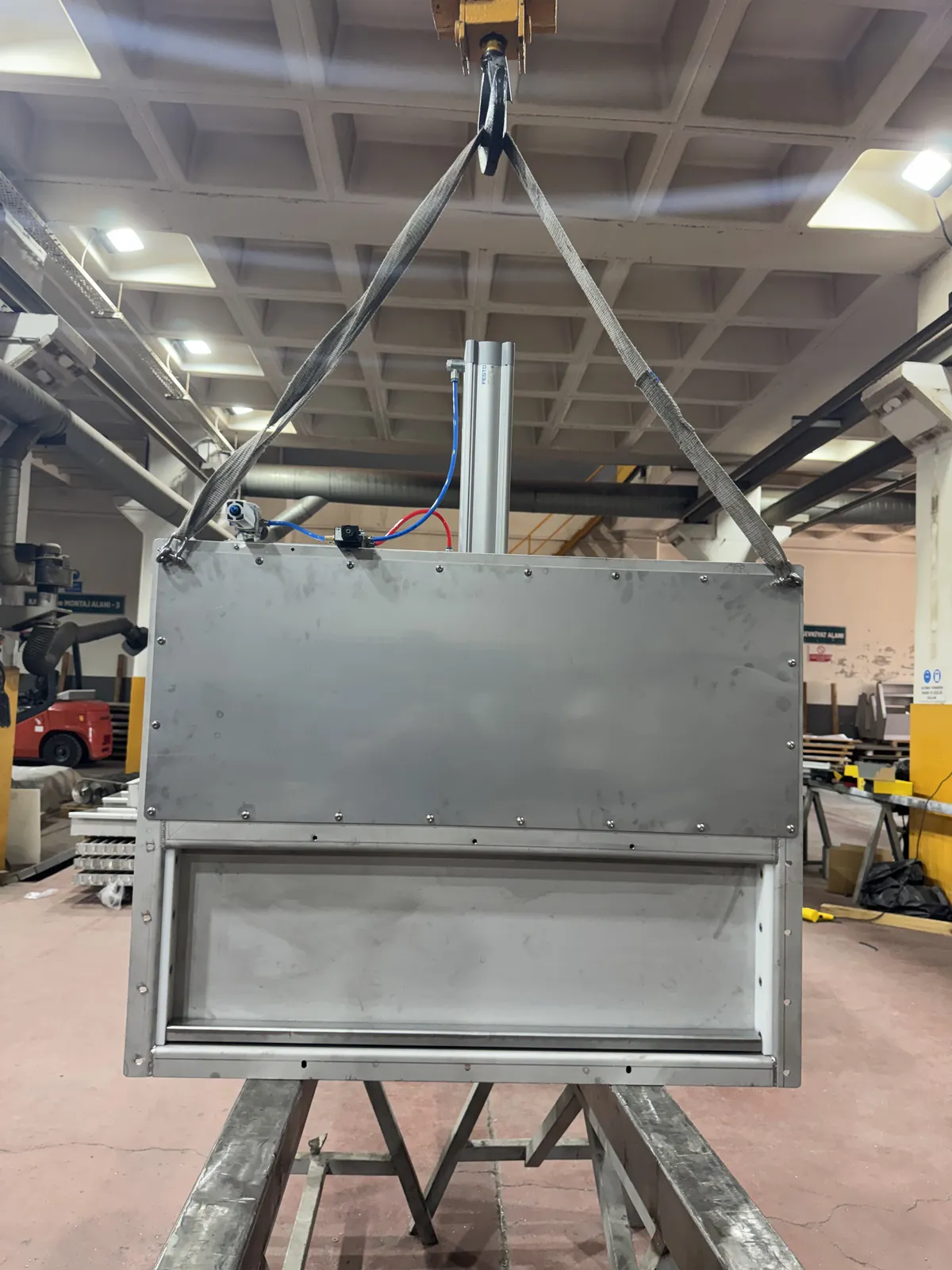

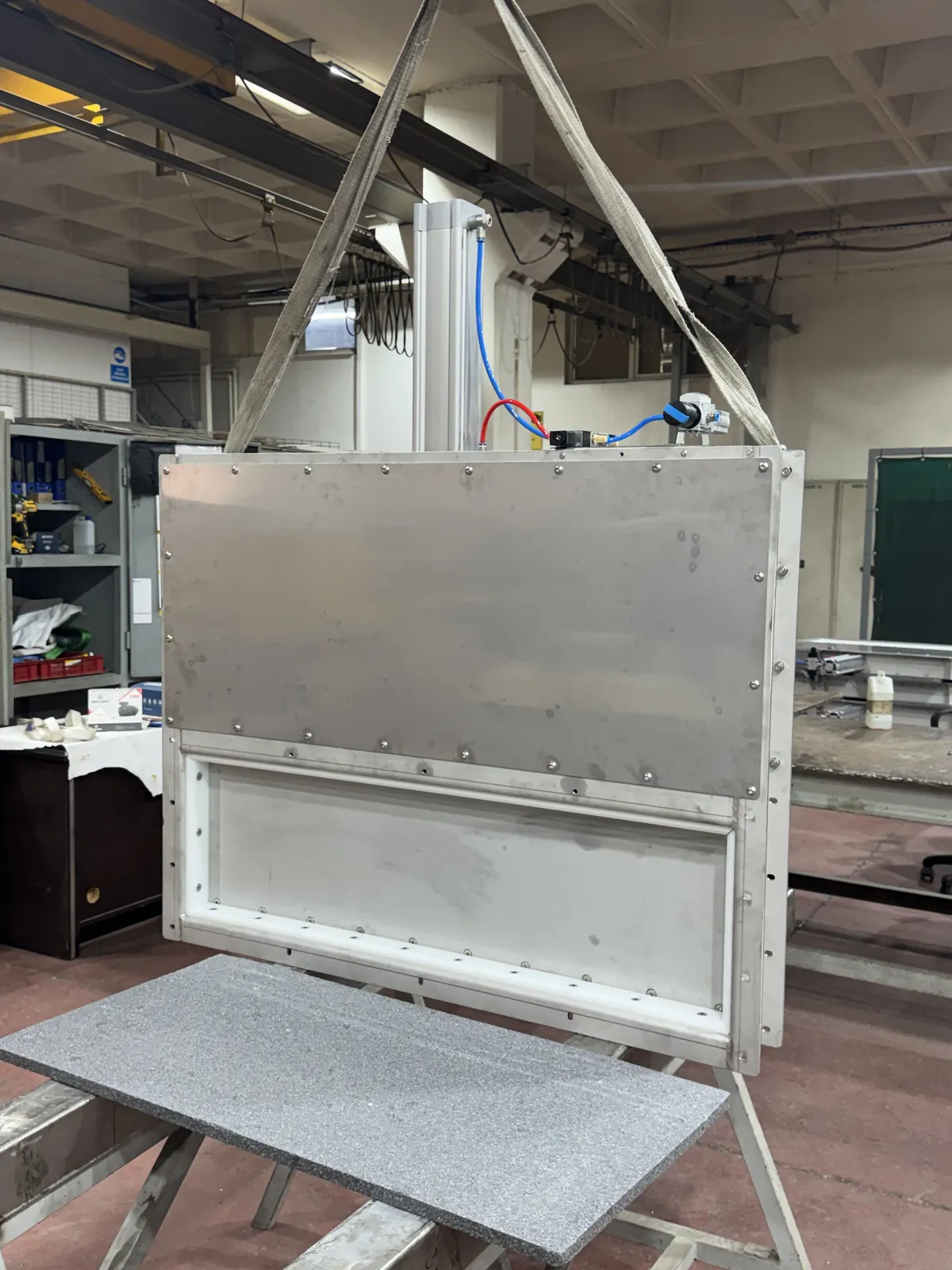

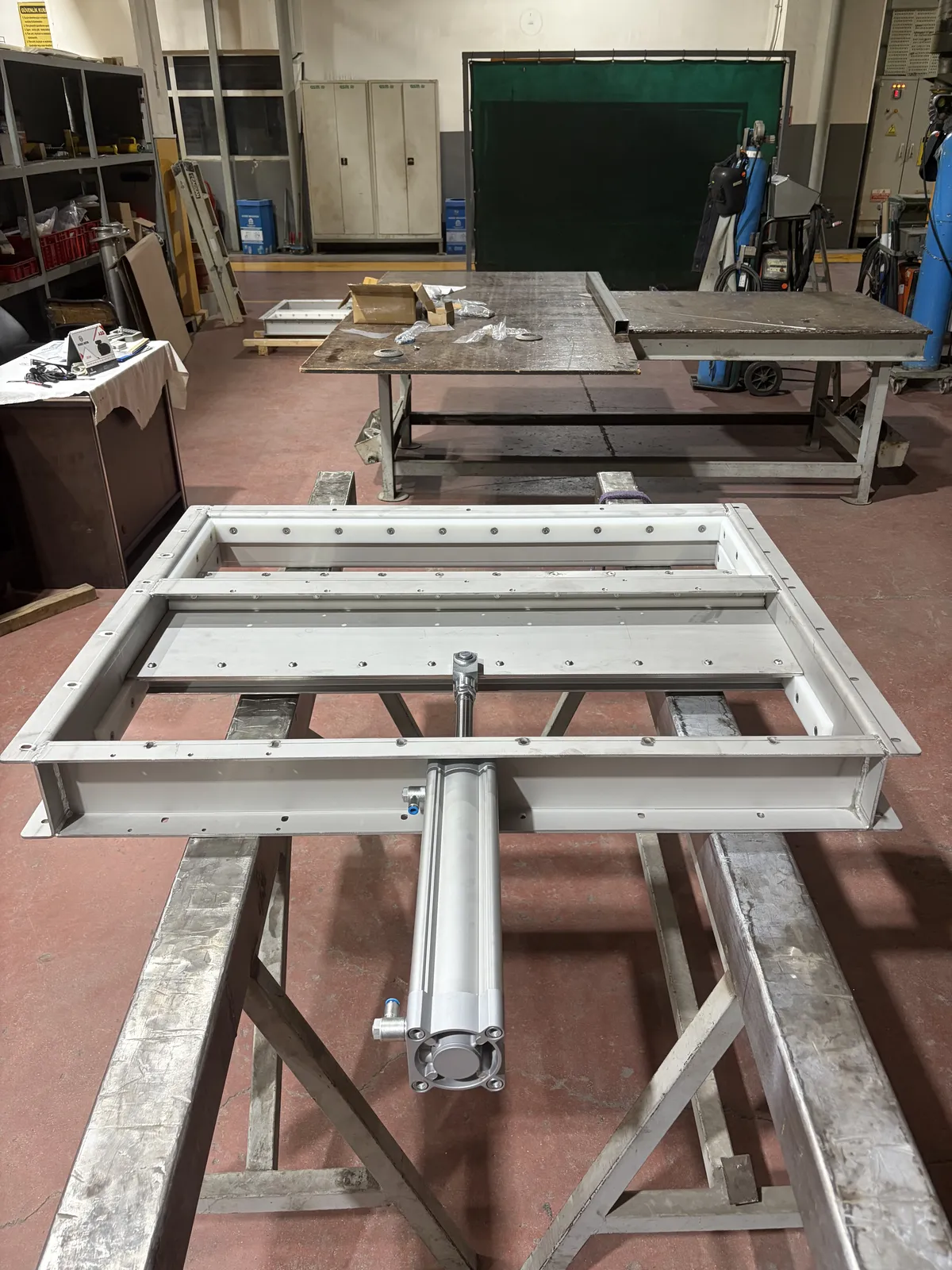

Sliding Gate - 4 pcs
Operation: Automatic via Pneumatic Actuator
Dimensions
Opening: 308 x 1082 mm
Frame width: 1182 mm
Frame length: 358 mm
Overall length: 1350 mm
Frame height: 125 mm
Frame thickness: 5 mm
Slide plate thickness: 6 mm
Mainly consists of

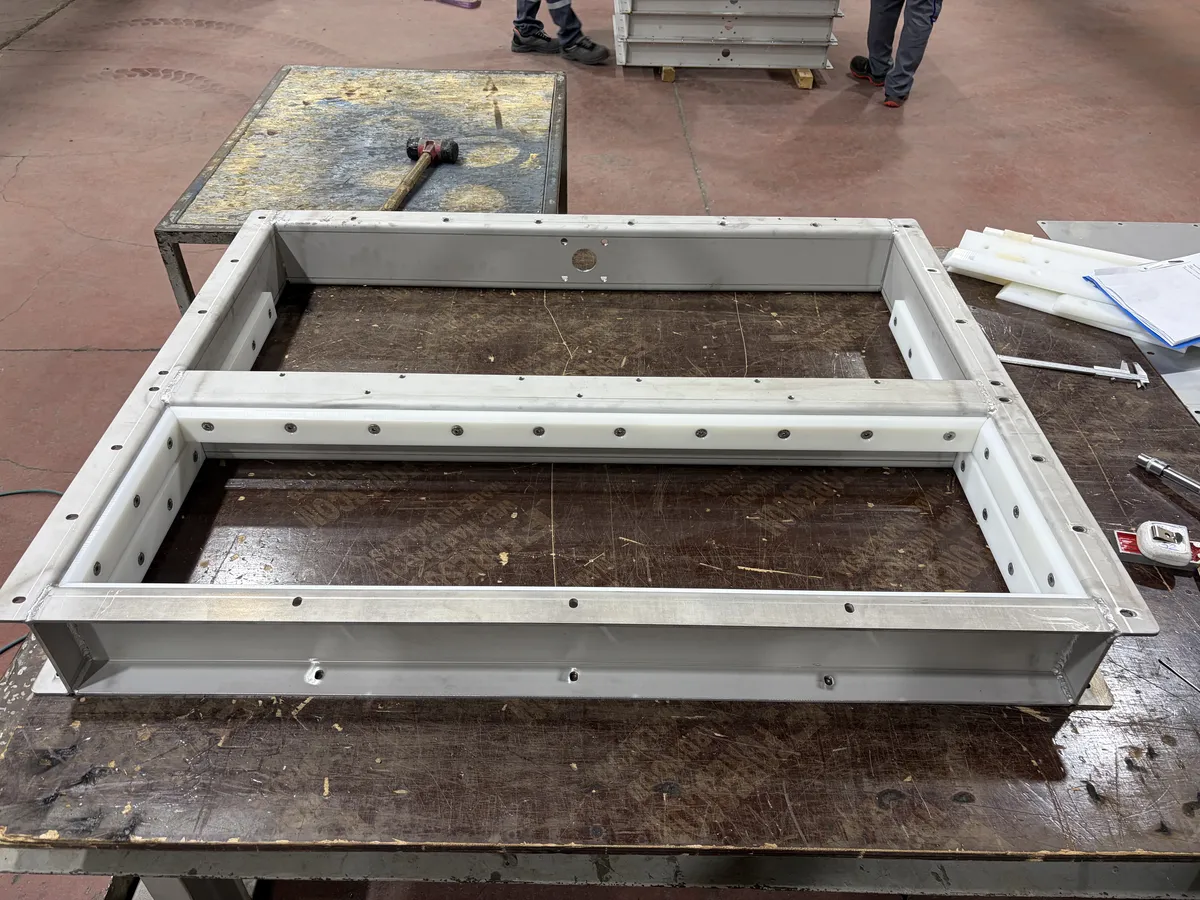

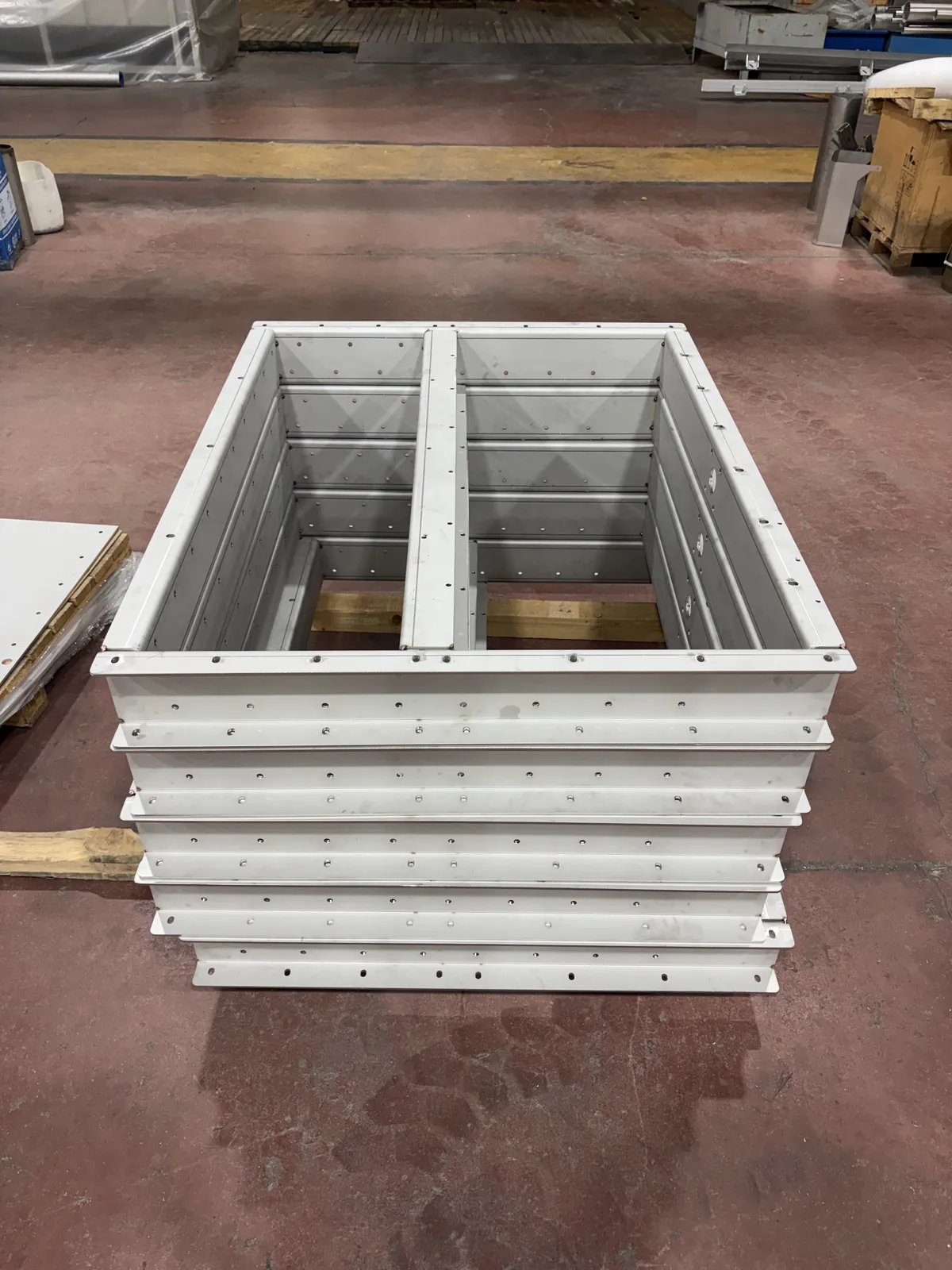

Frame: AISI 304L
Slide plate: AISI 304L
Slide plate seal: PE1000

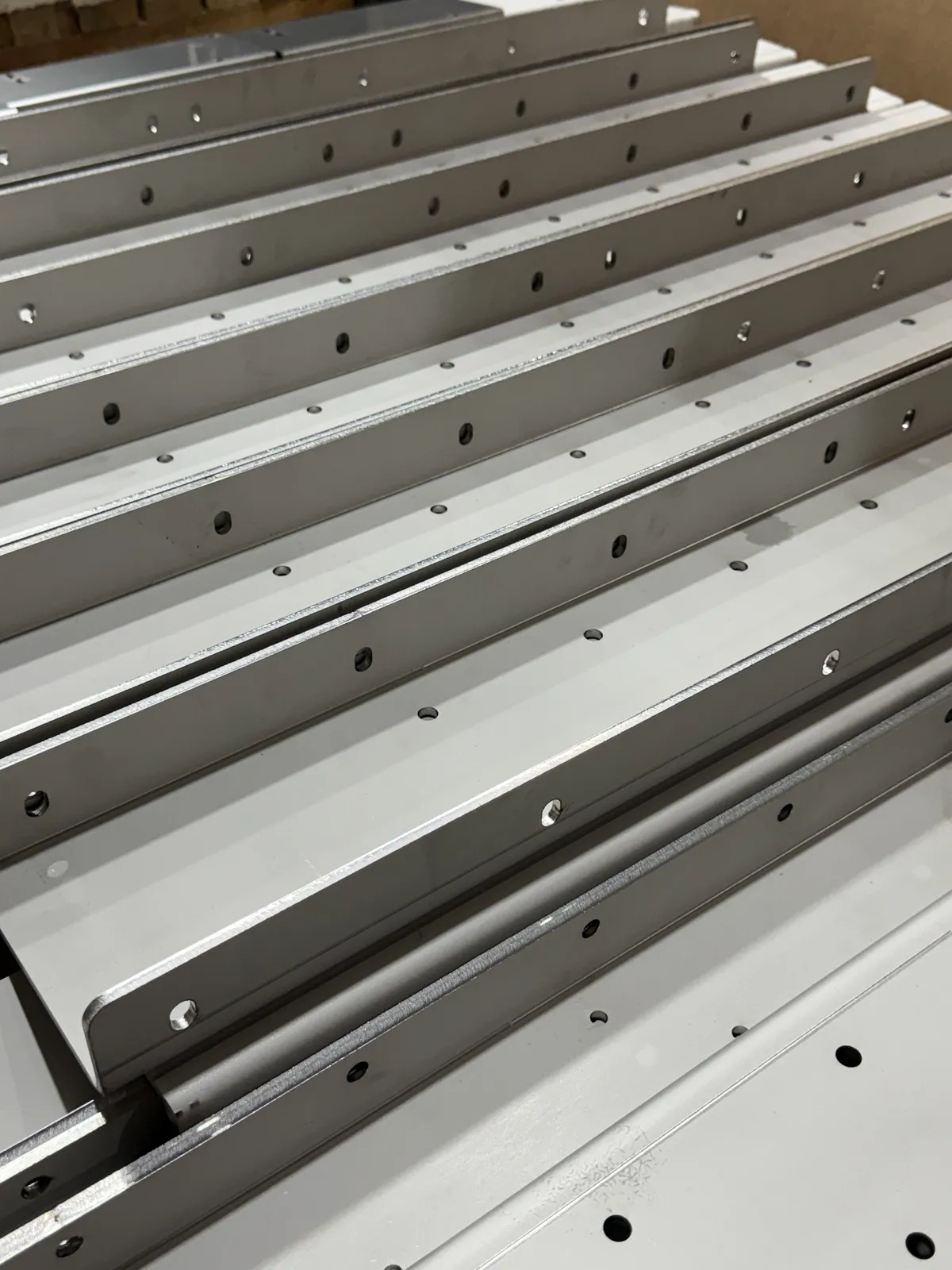

Slide plate guide: PE1000

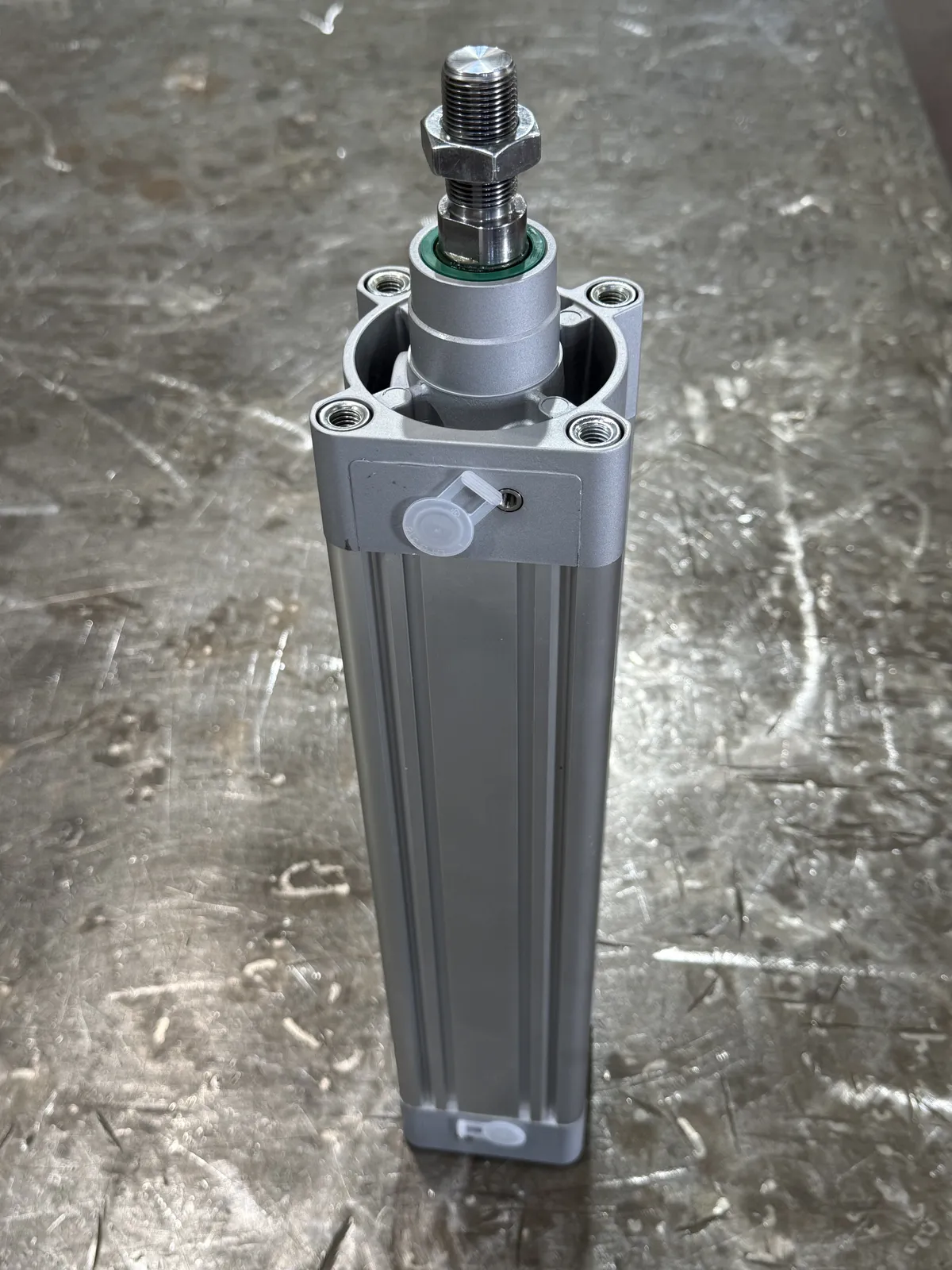

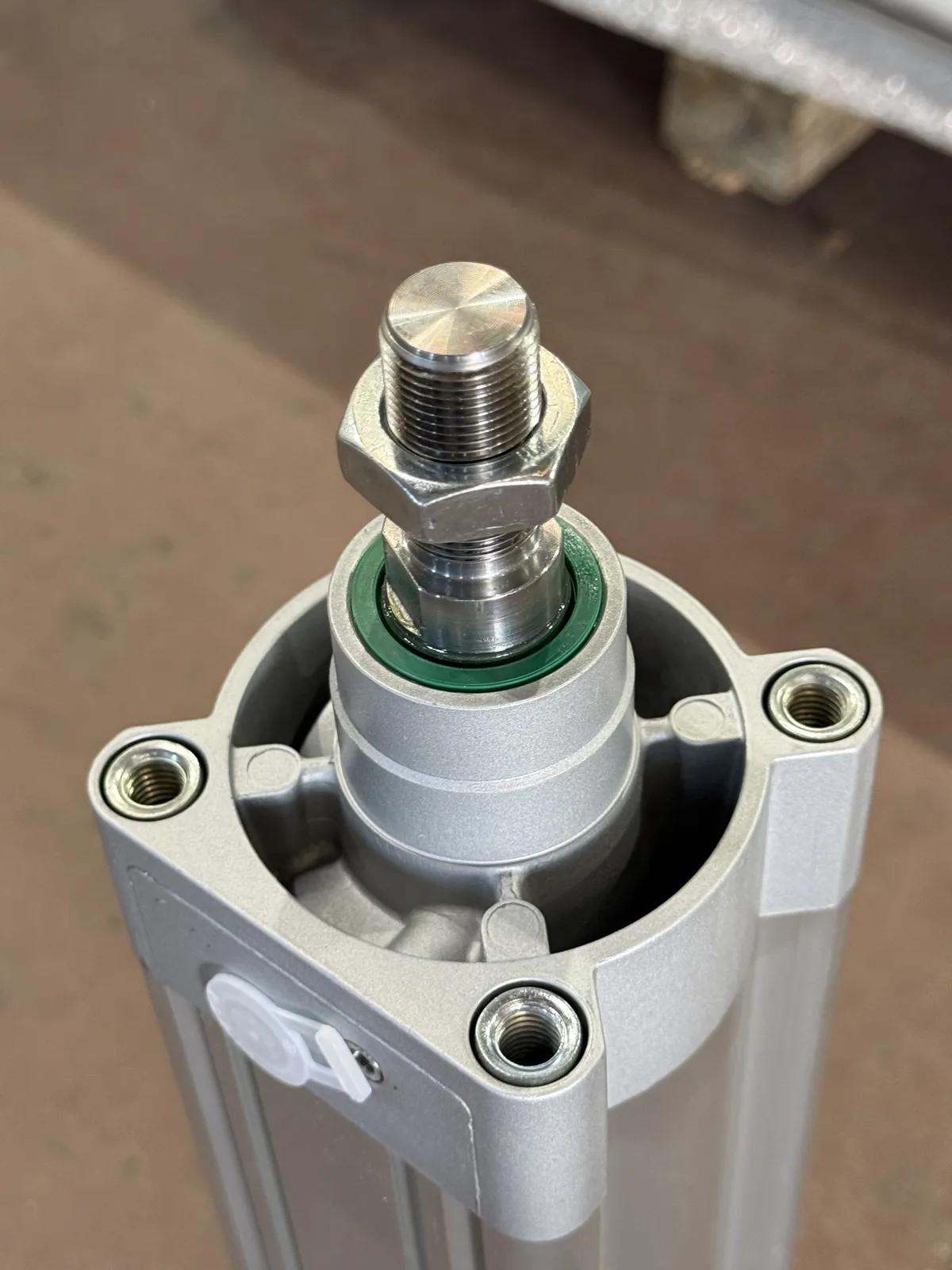

Actuator: Festo (Germany)
Top cover: AISI 304L
Bottom cover: AISI 304L
Accessories
Magnetic switches: Included
Control valve kit: Included
Filter regulator: Included
