Scope of the Project
Manufacturing and testing of externally fed rotary drum screens to Germany with requested documentation.

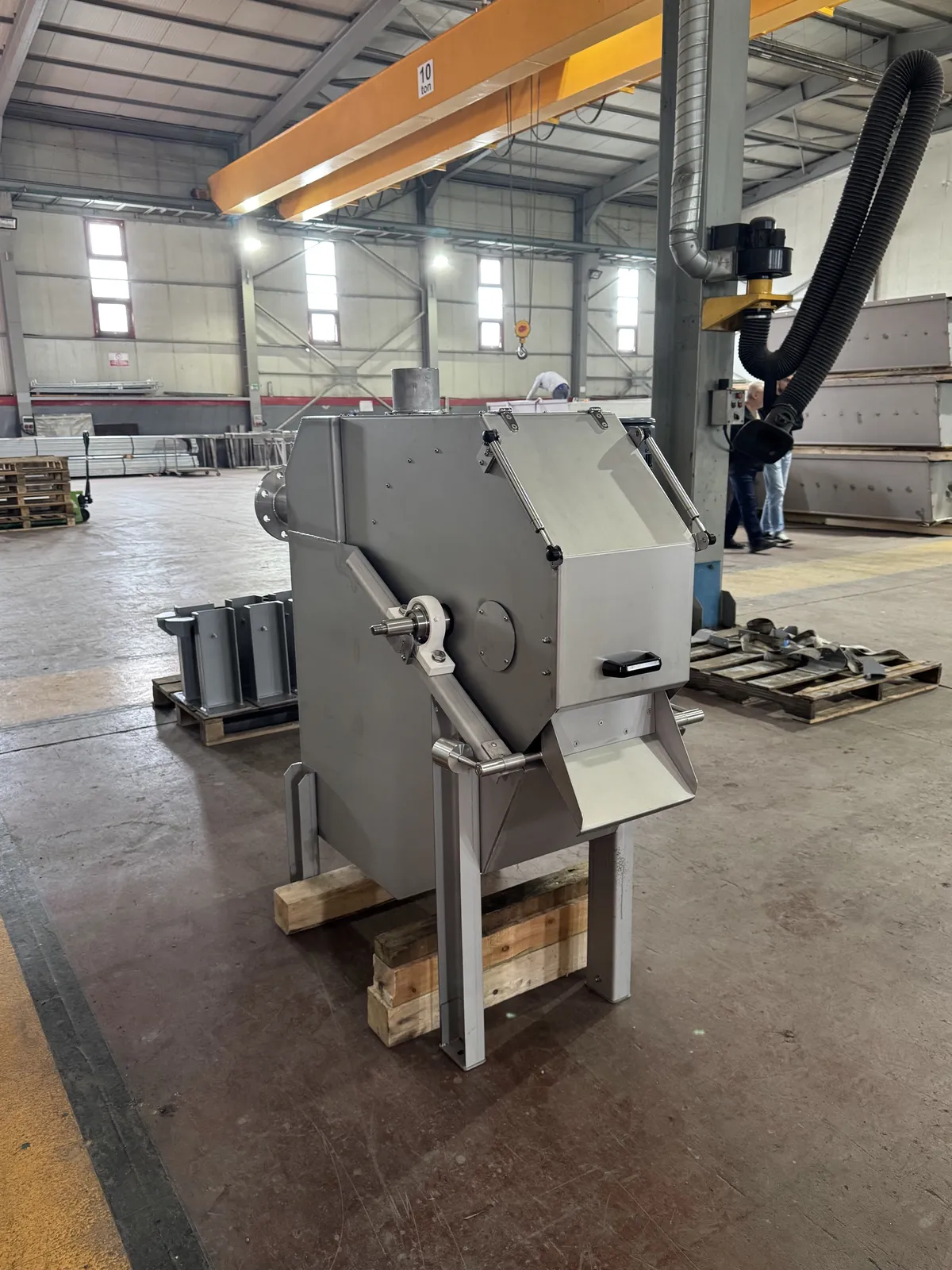

Rotary Drum Screen - 1 pcs
Type : EDS300 – Externally feed
Capacity : 120 m³/h (Clean water @ 20°C)
Sieve Opening : 2.00 mm
Dimensions
Drum Diameter : 624 mm
Length of Sieve : 300 mm
Surface Type : Wedge wire
Connections : Flanged
Envelope : 1350*800*1380mm (W*L*H)
Weight : 230kg (Dry) / 380kg (Full)

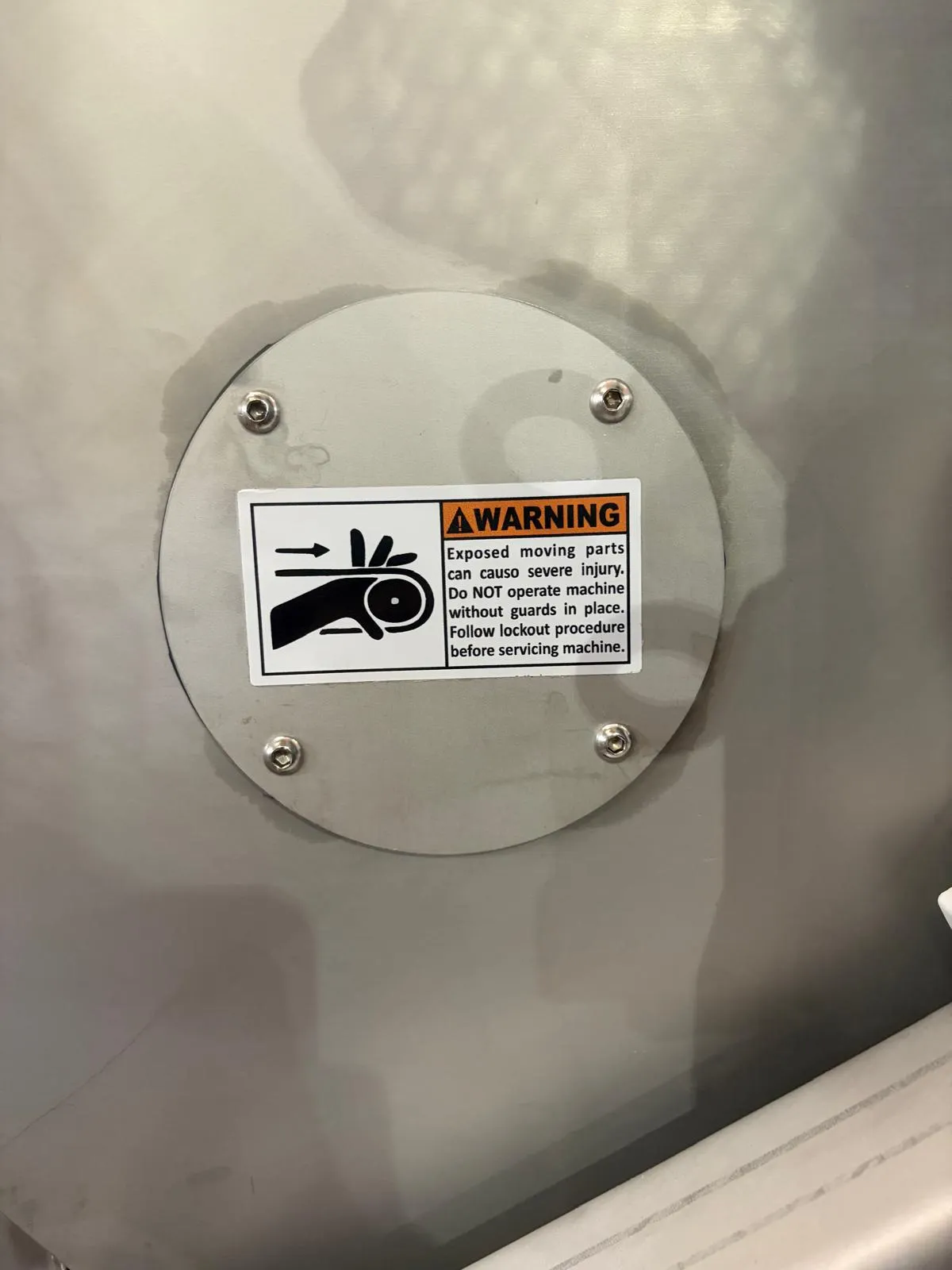

Light hole : Ø100mm
Mainly consist of

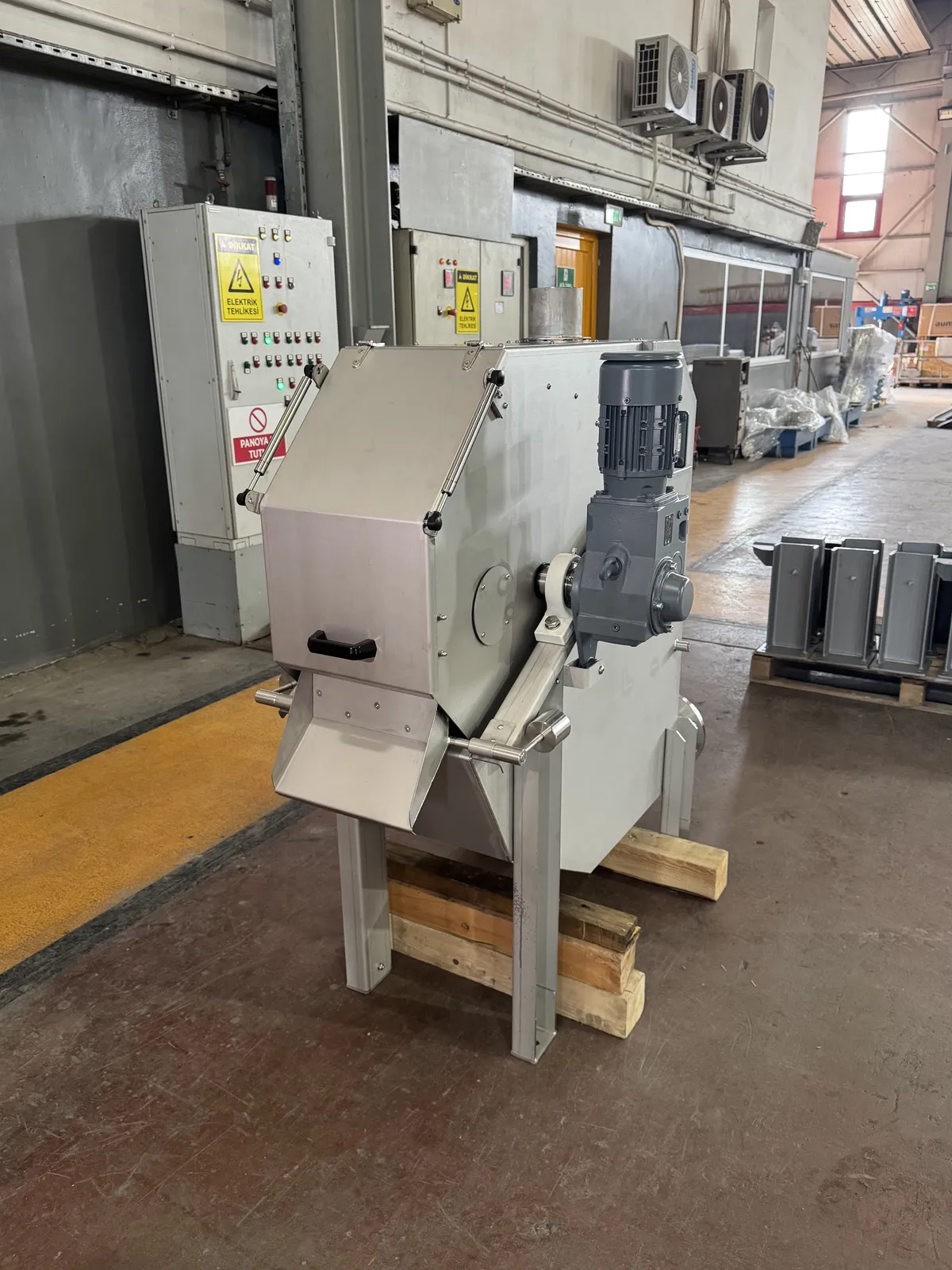

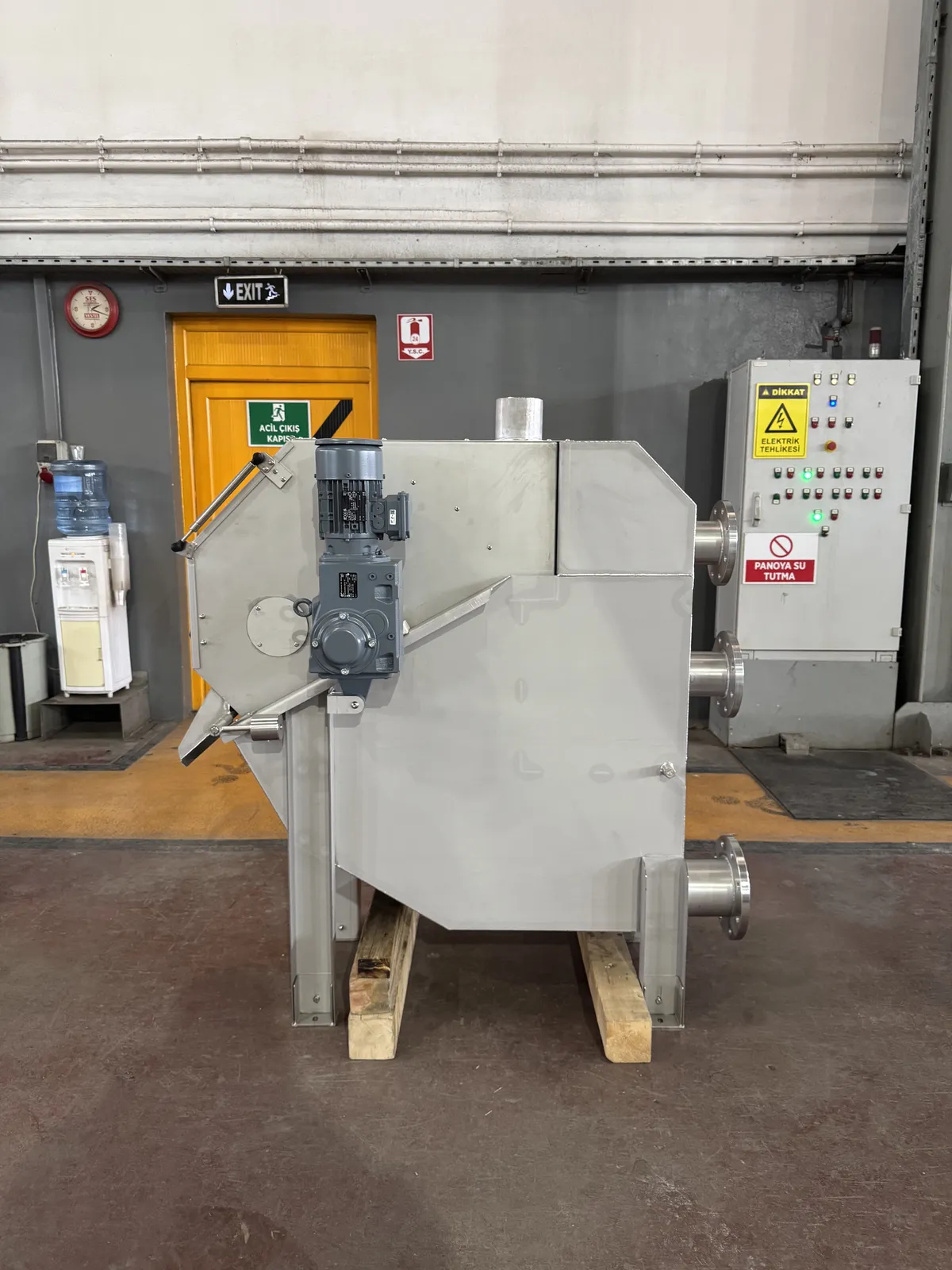

Drive unit : NORD SK9016.1 AZBHD – 71SP/4 (7.7rpm)

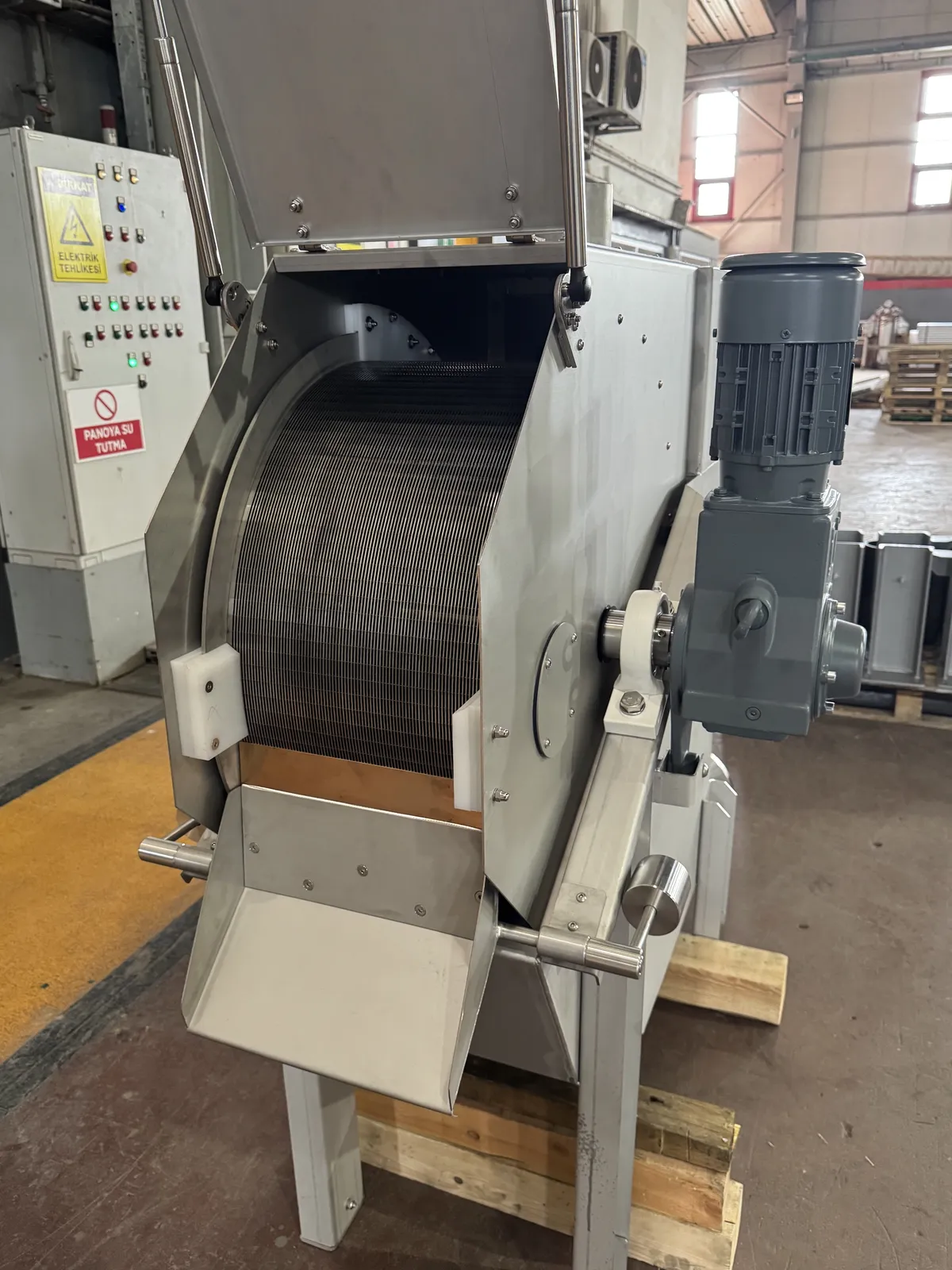

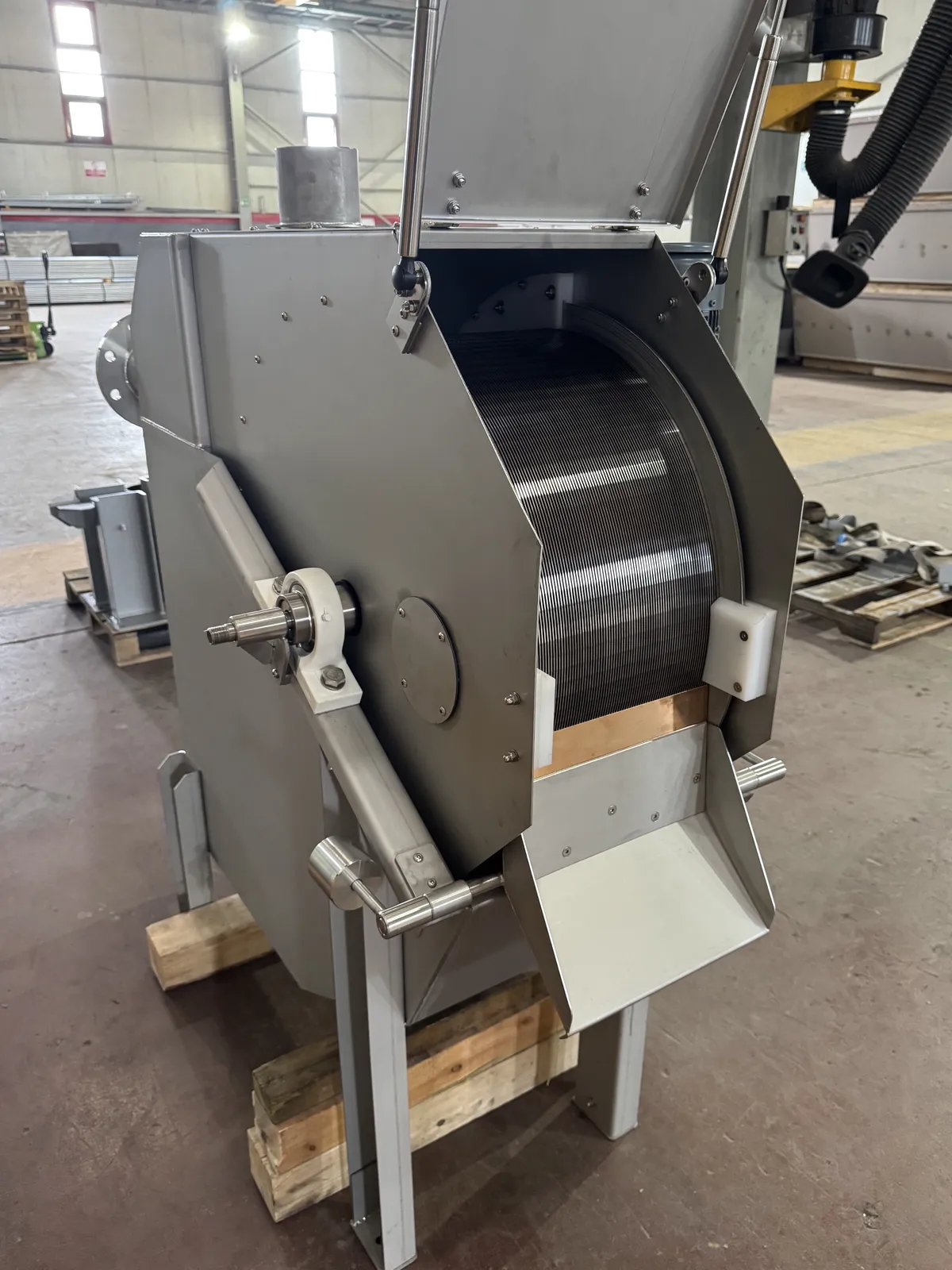

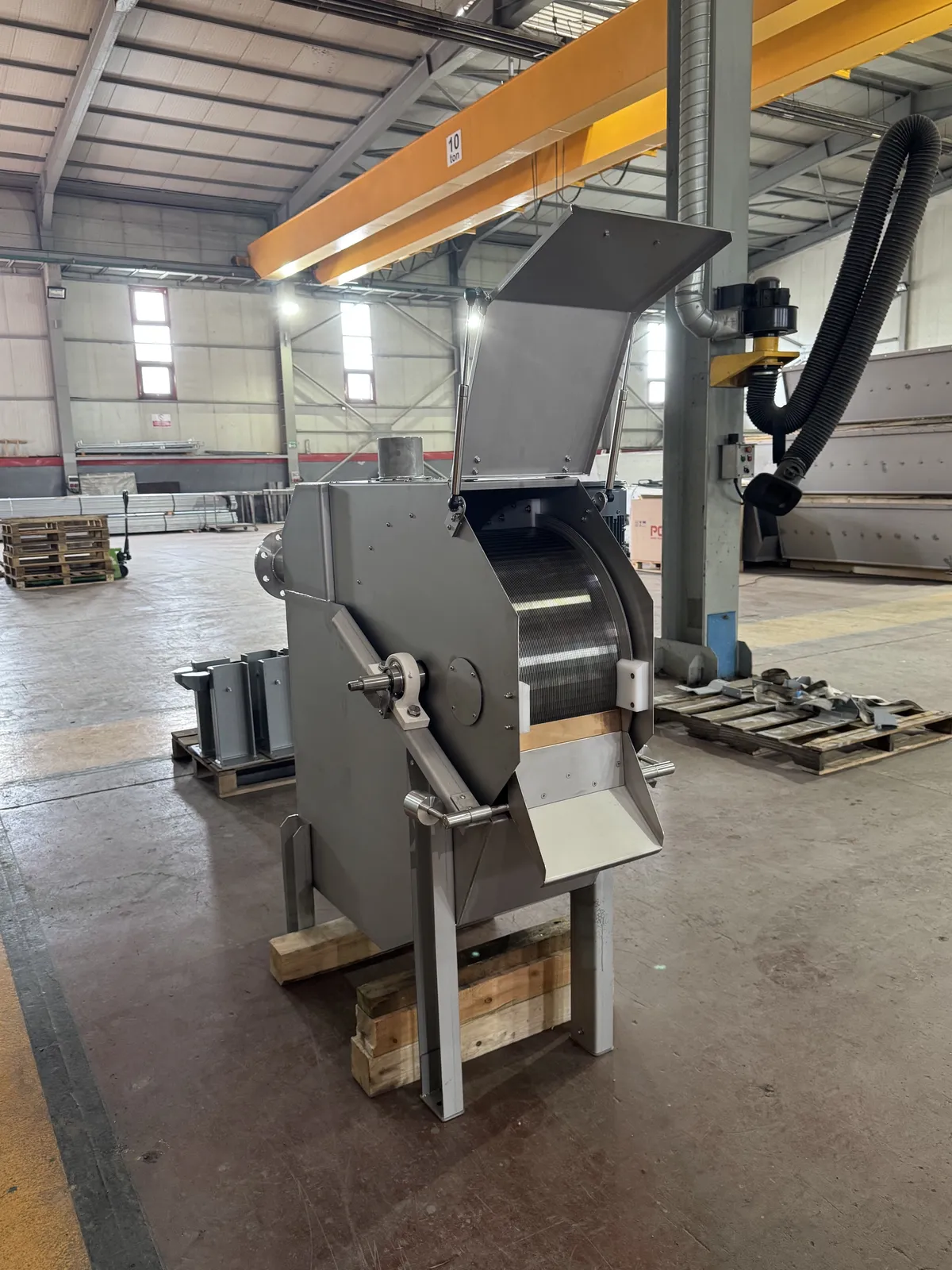

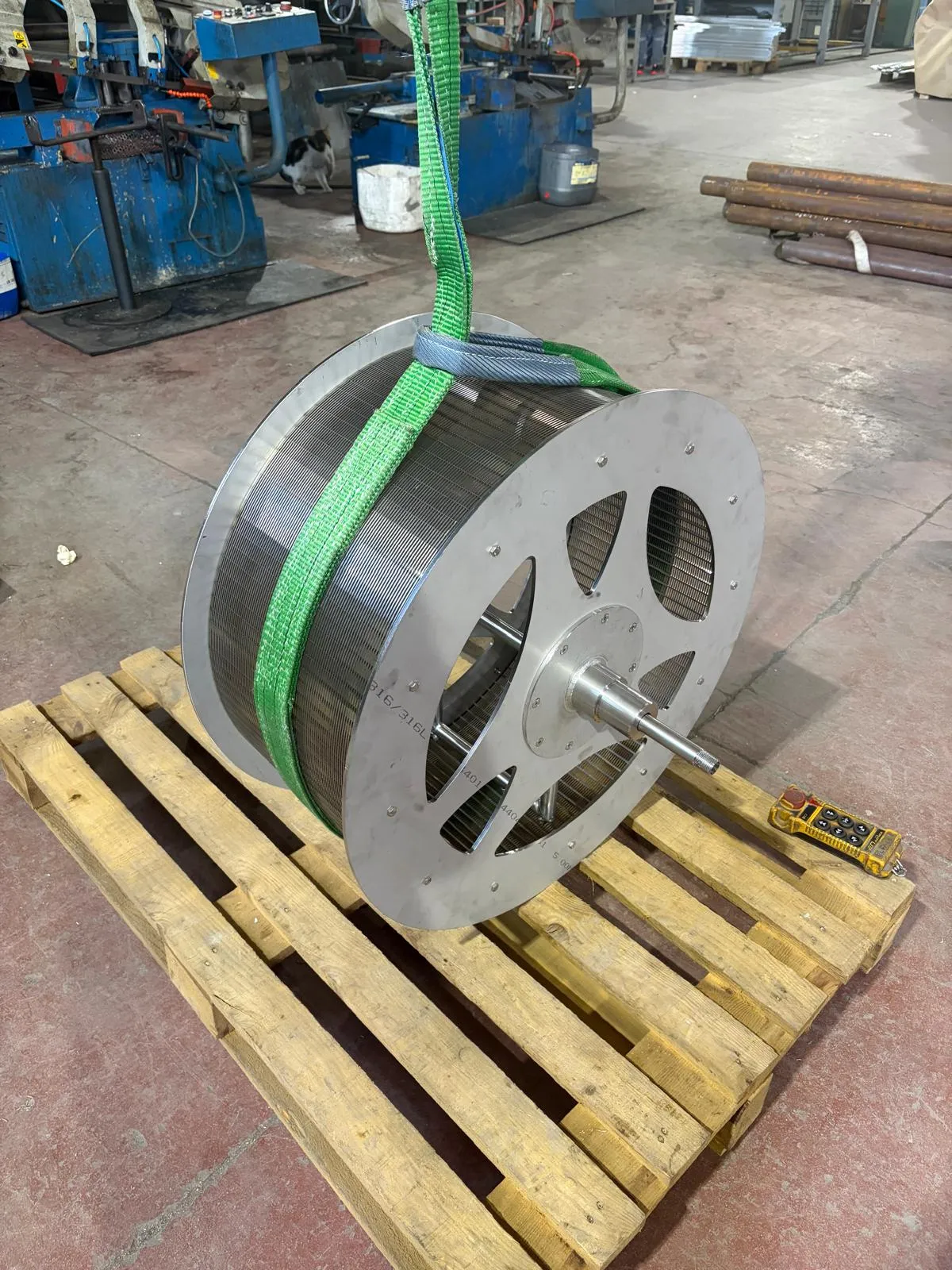

Drum : Progress – Wedge wire, AISI 316L

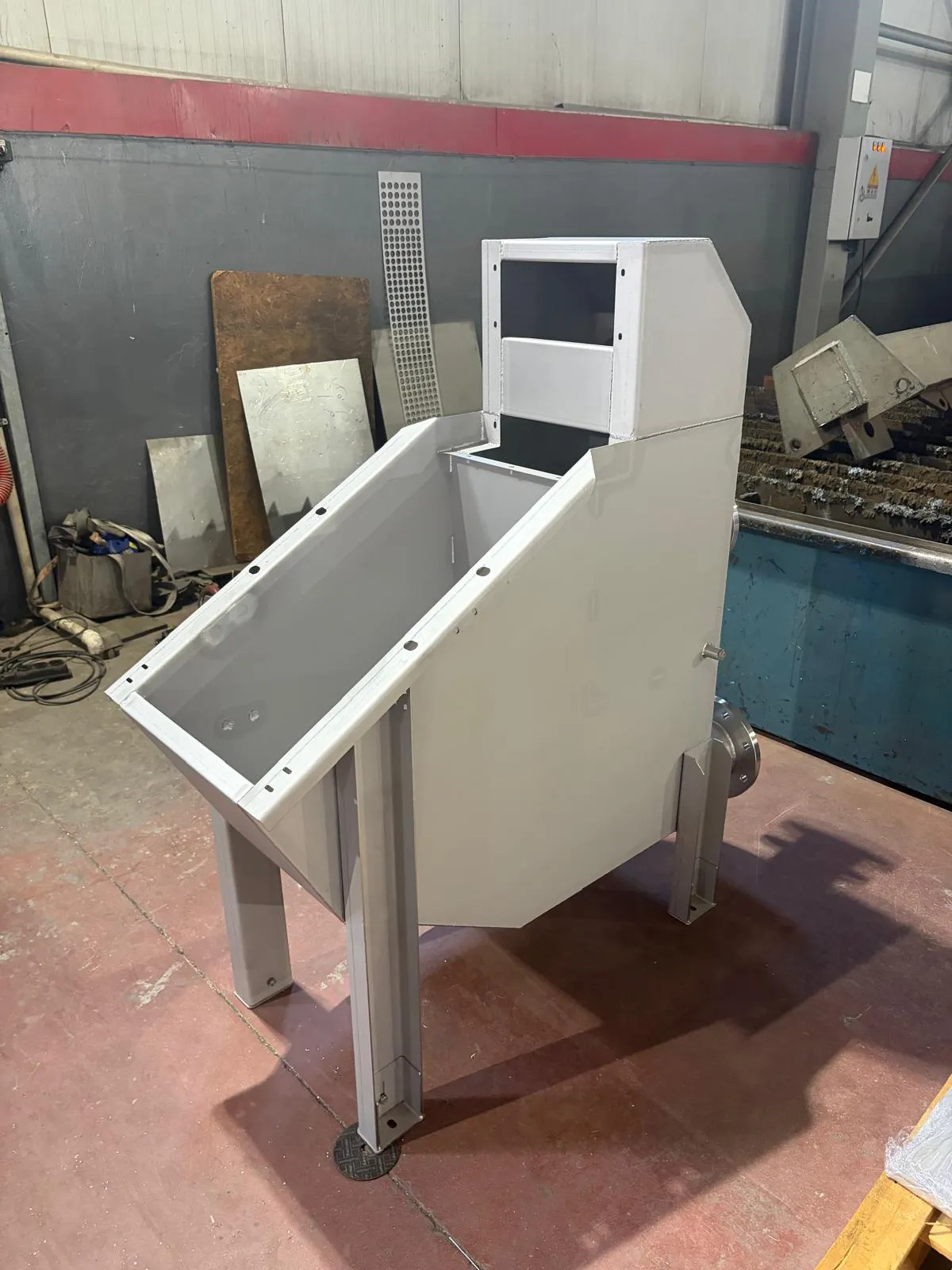

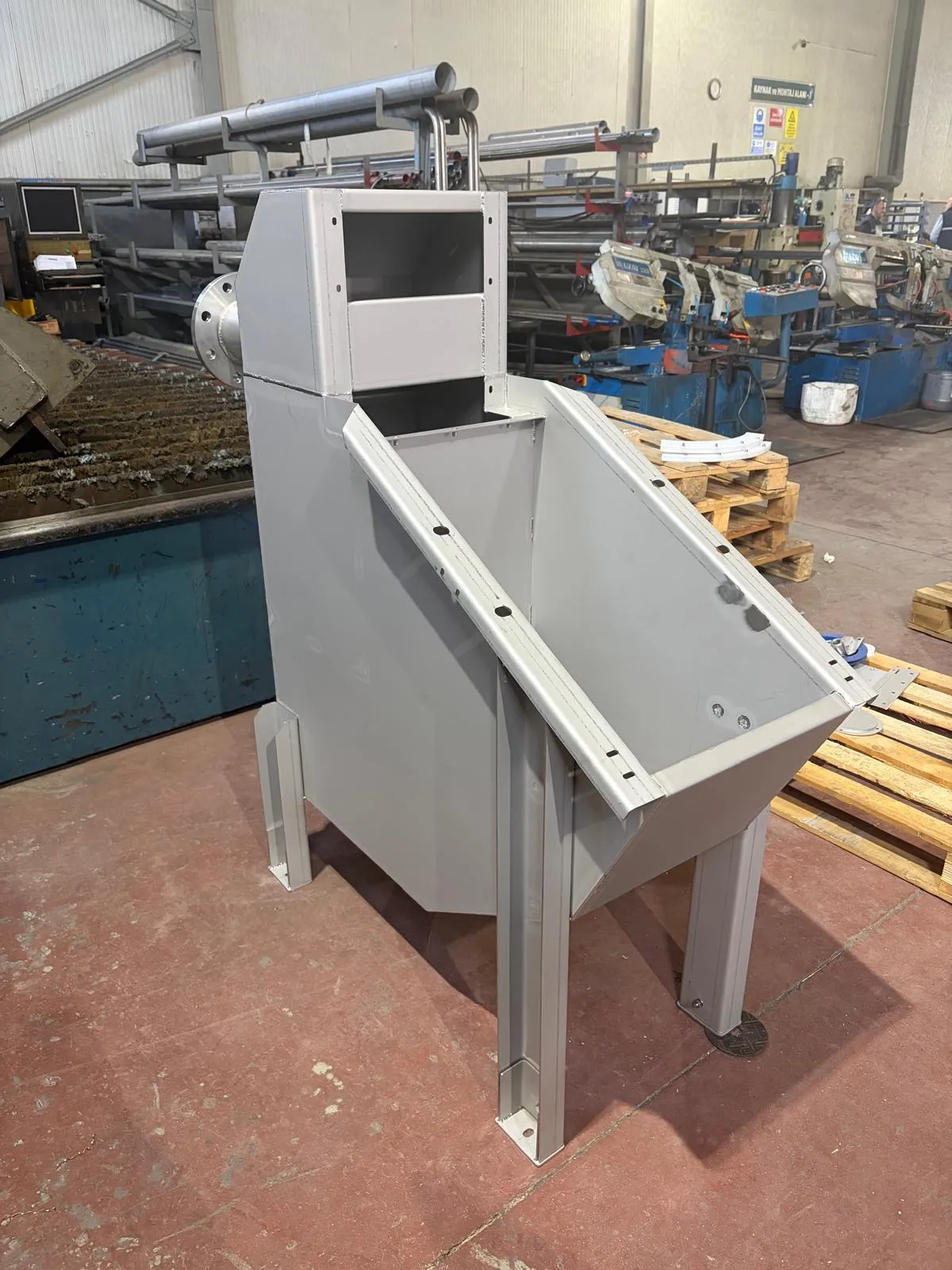

Basin : AISI 316L
Cover : AISI 316L

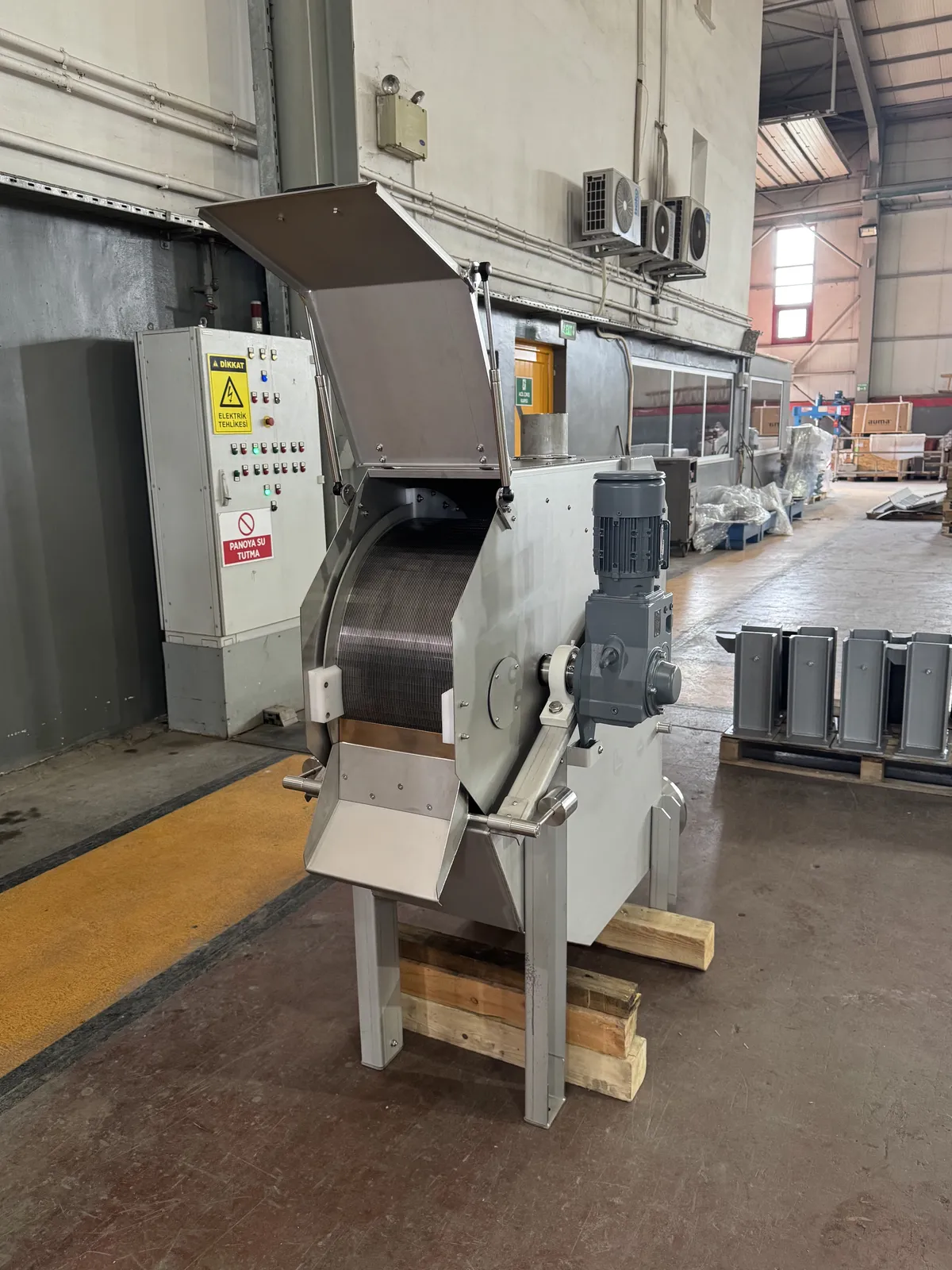

Scraper blade : Bronze (CuSn6)
Counterweight : AISI 316L
Spray nozzle inlet : AISI 316L

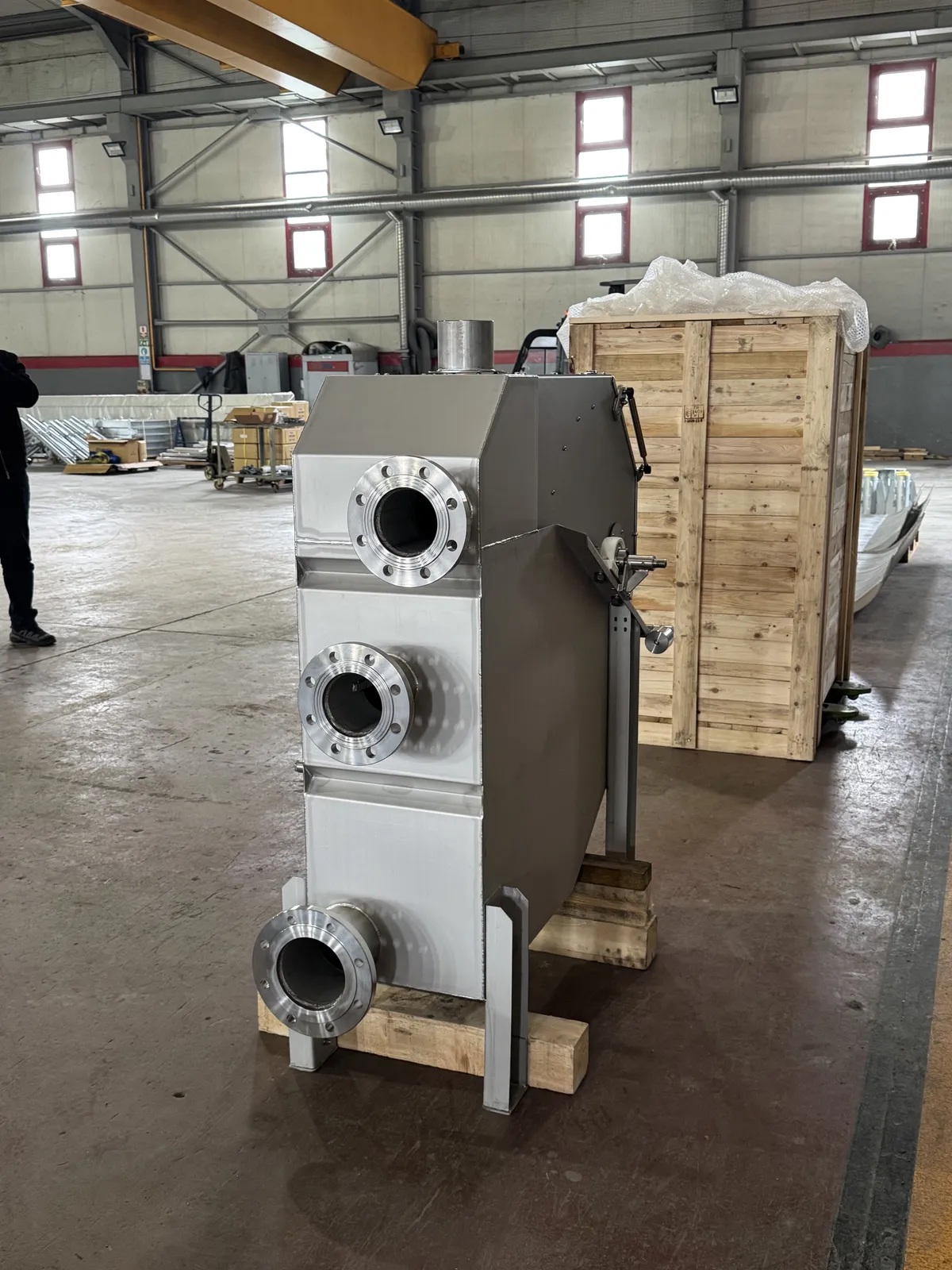

Inlet : DN 100
Outlet : DN 125
Overflow : DN 100
Electrical
Supply : 400 V / 50 Hz / 3 phase
Motor power : 0.25 kW
Protection / Enclosure : IP 55, C3 paint, Thermistors
Optional

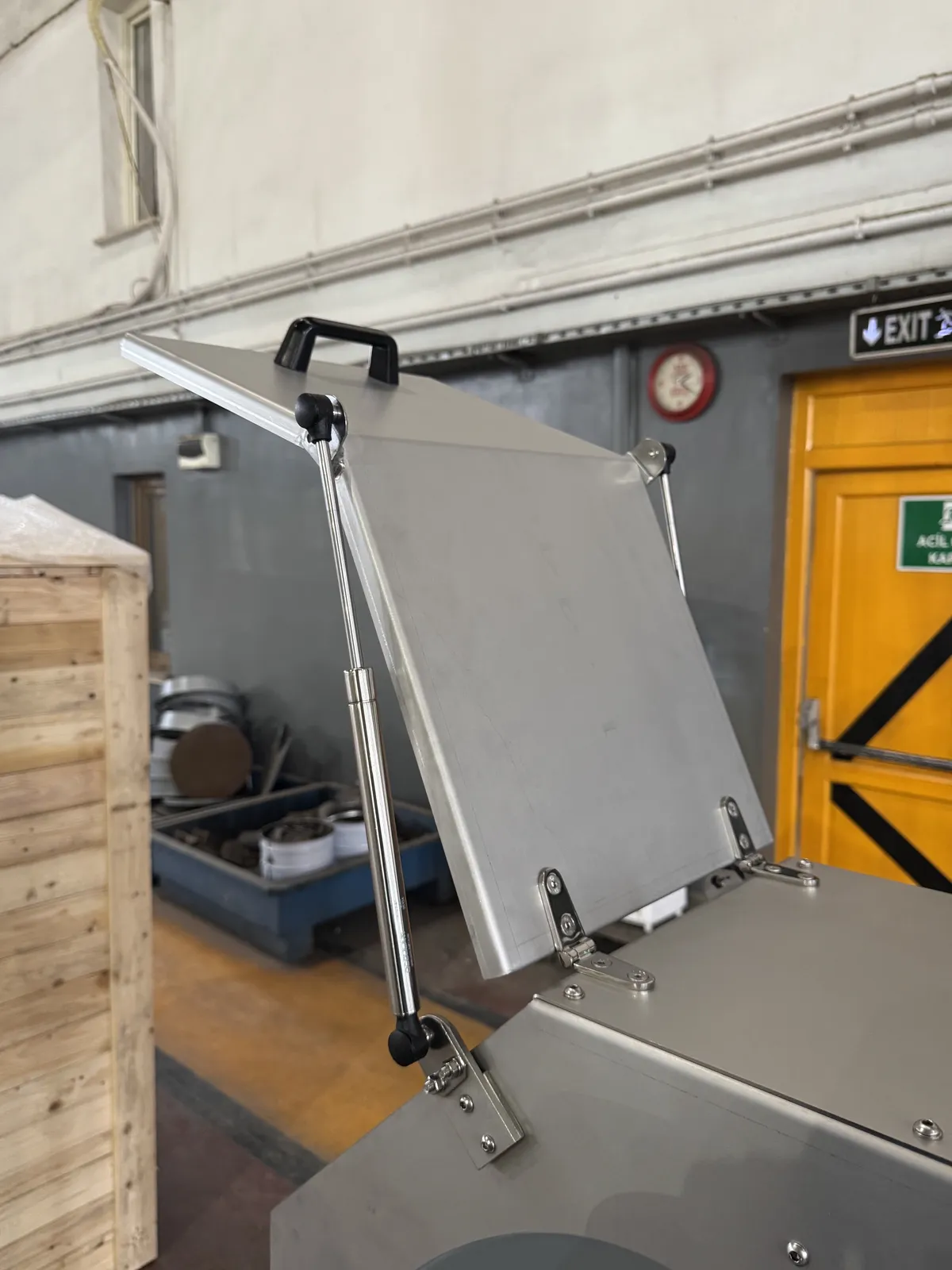

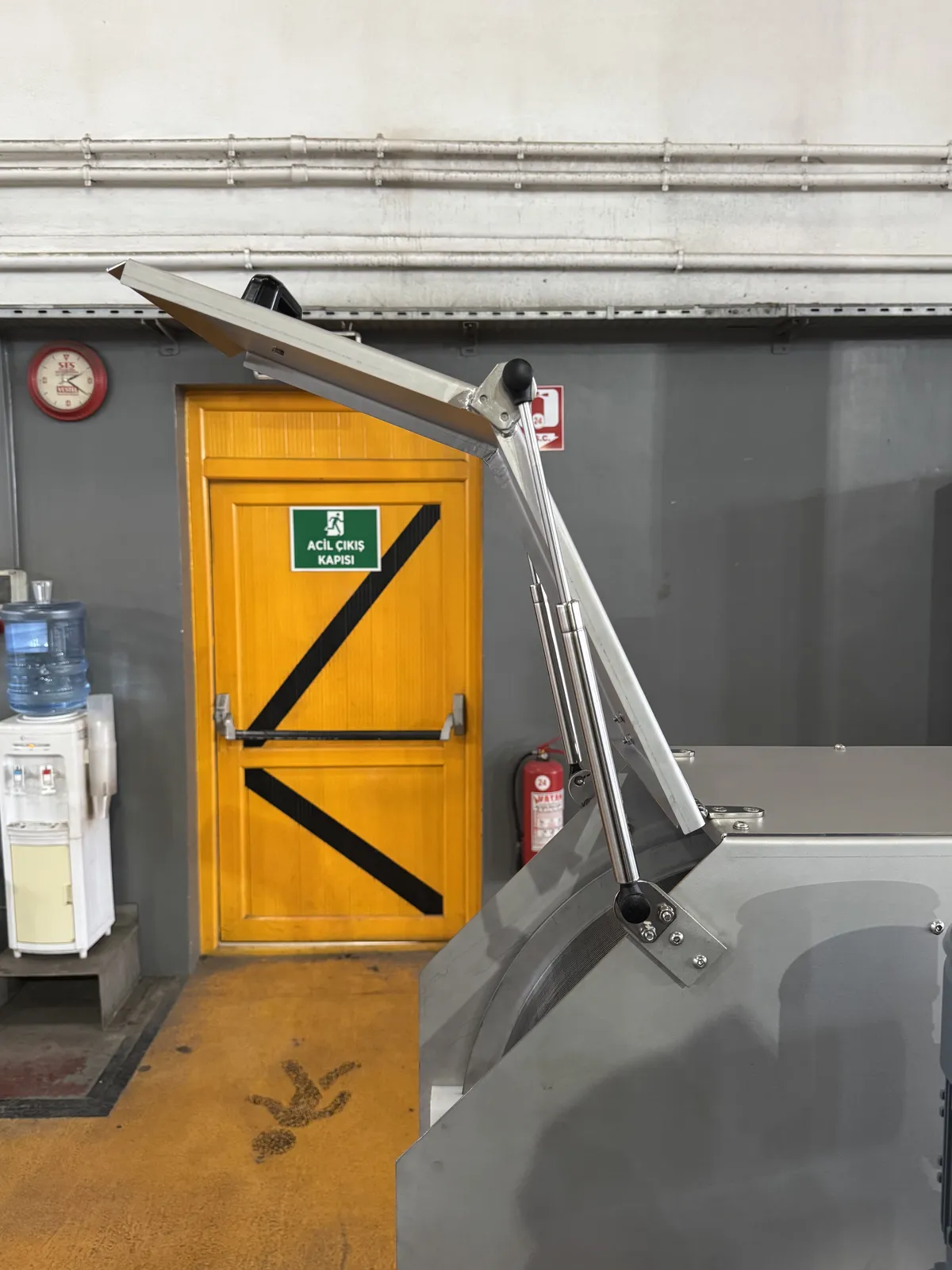

Cover : Gas springs (Stainless), Handle (Plastic)
Exhaust : DN100 pipe
Scraper Blade : Spare
