Scope of the Project
Manufacturing, testing and delivery of externally fed rotary drum screens to Malaysia with requested documentation.

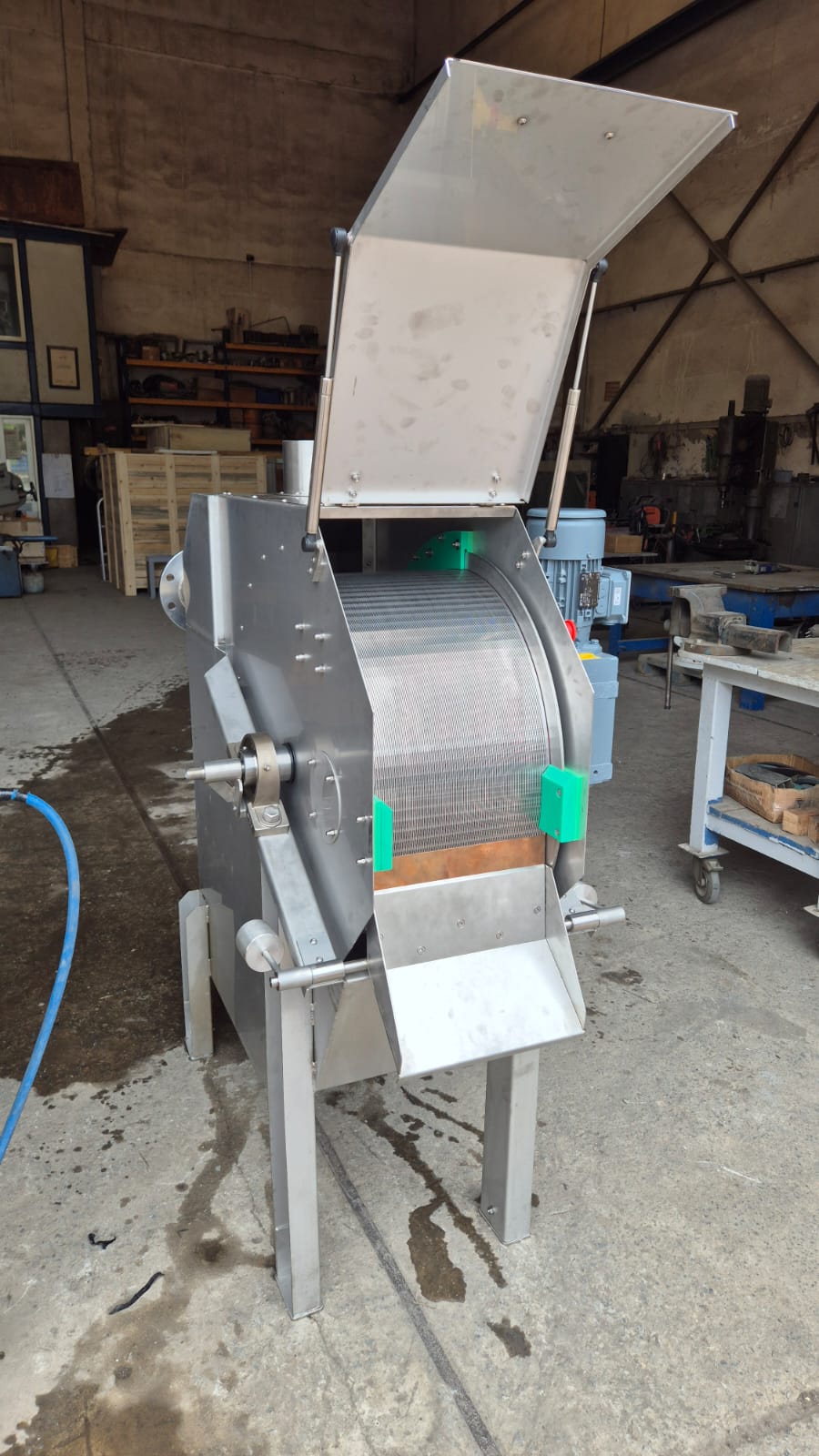

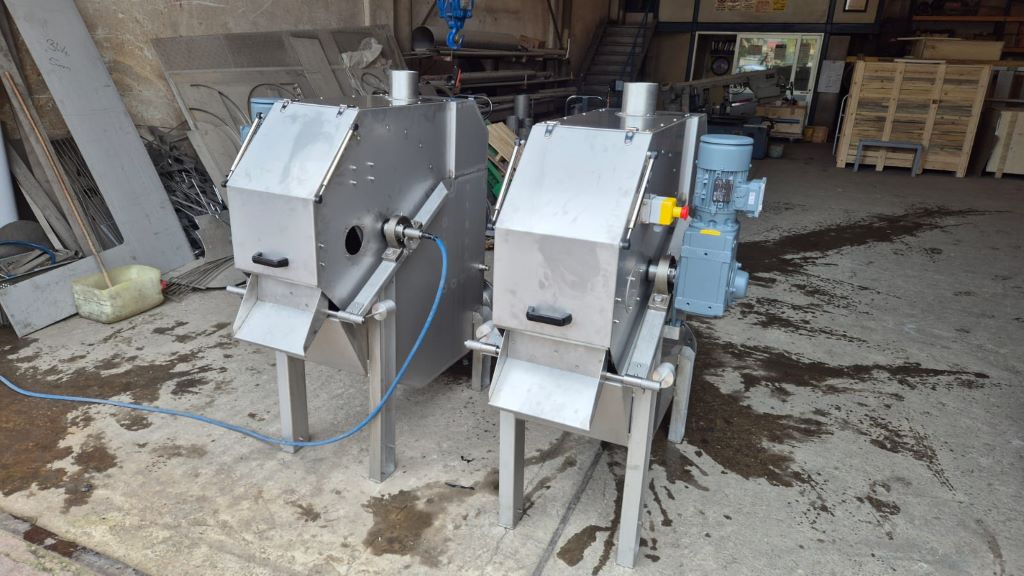

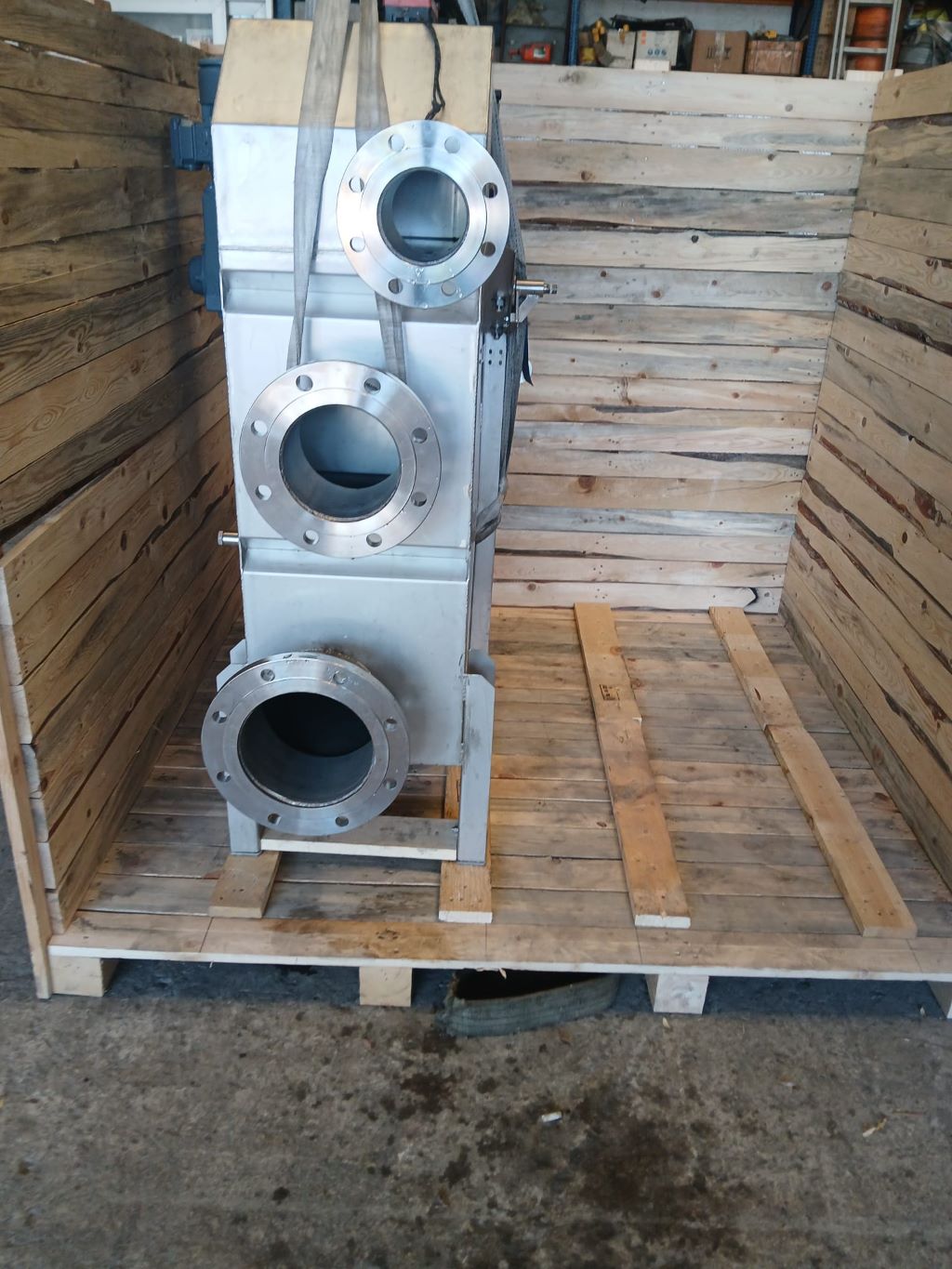

Externally Fed Rotary Drum Screen - 2 pcs
Type : EDS300 – Externally fed
Capacity : 80 m³/h (Clean water @ 20°C)
Sieve Opening : 1.00 mm
Dimensions
Drum Diameter : 620 mm
Length of Sieve : 300 mm
Surface Type : Wedge wire
Connections : Flanged
Envelope : 1350*750*1375mm (W*L*H)
Weight : 136kg Dry
Light hole : Ø100-150 mm
Mainly consist of
Drive unit : NORD SK9016.1 AZBHD – 71SP/4 (7.7rpm)

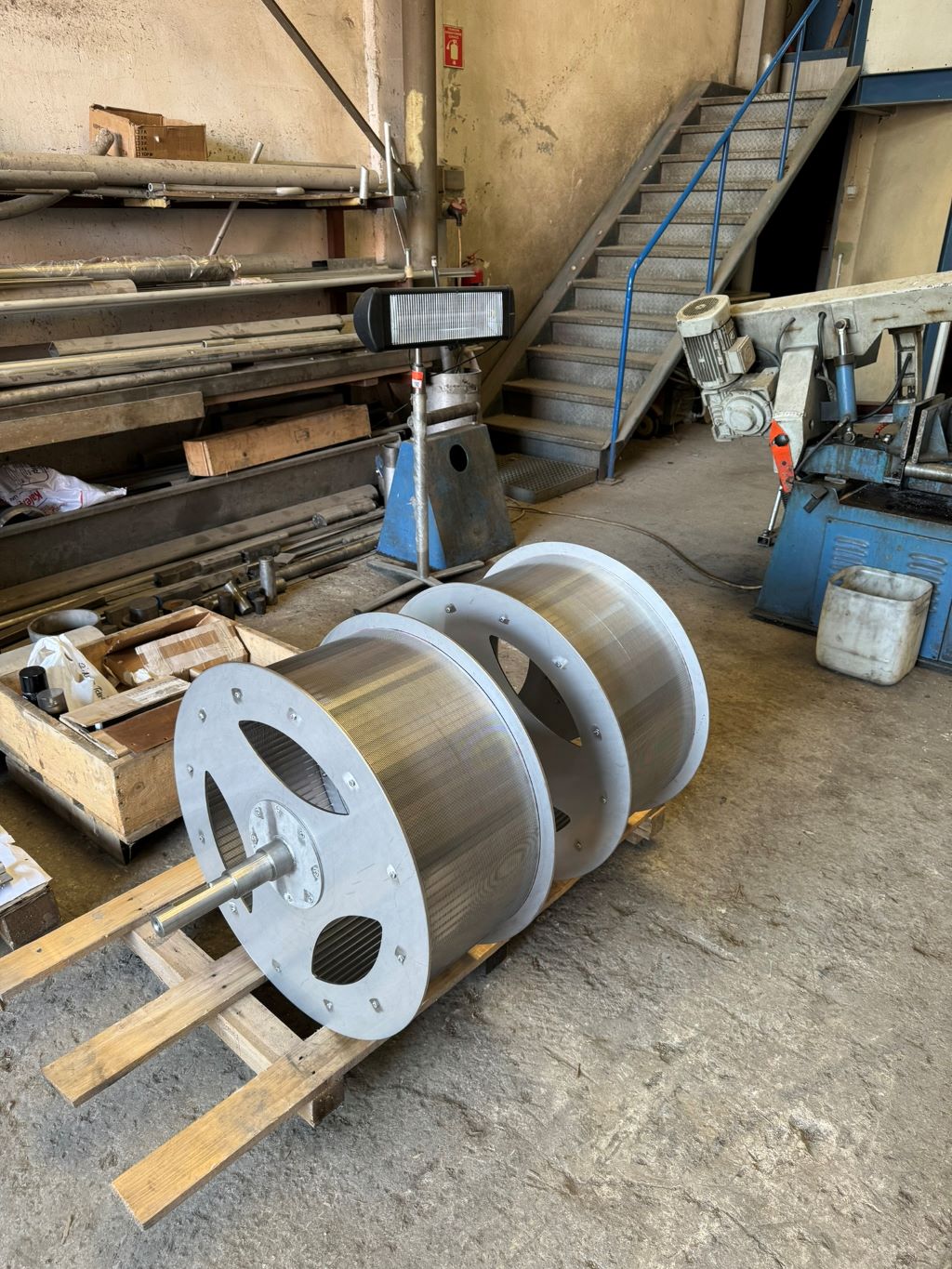

Drum : Wedge wire, AISI 316L

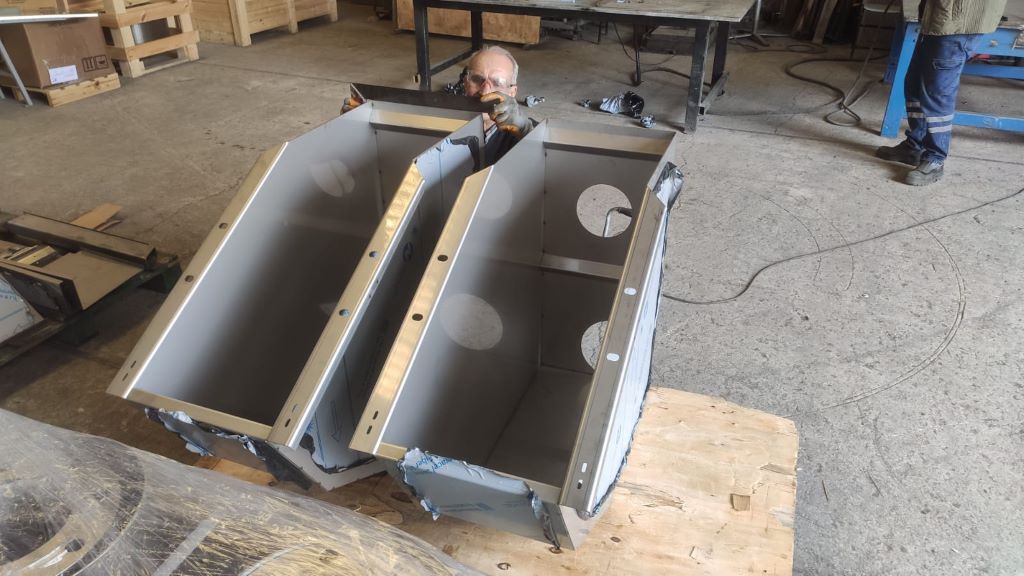

Basin : AISI 316L
Cover : AISI 316L
Doctor blade : Copper alloy / AISI 316L
Counterweight : AISI 316L

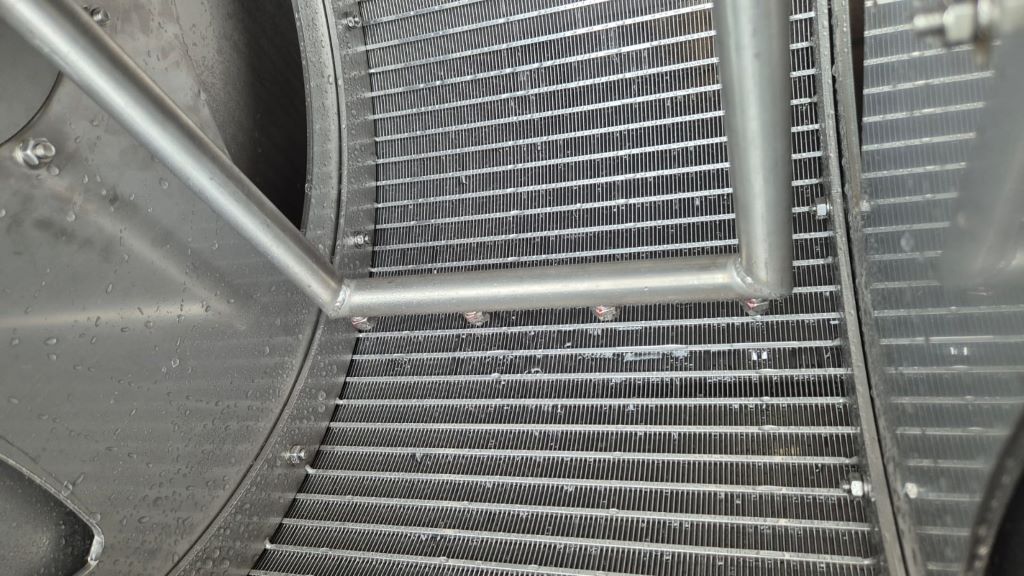

Spray nozzle inlet : AISI 316L
Inlet : DN 150
Outlet : DN 200
Overflow : DN 100
Electrical
Supply : 380 V / 50 Hz / 3 phase
Motor power : 0.25 kW
Protection / Enclosure : IP 55, -10°C to 40°C
Control Panel & Wiring : Excluded
