Scope of the Project
Manufacturing, testing and delivery of slow reaction mixers to Romania with requested documentation.

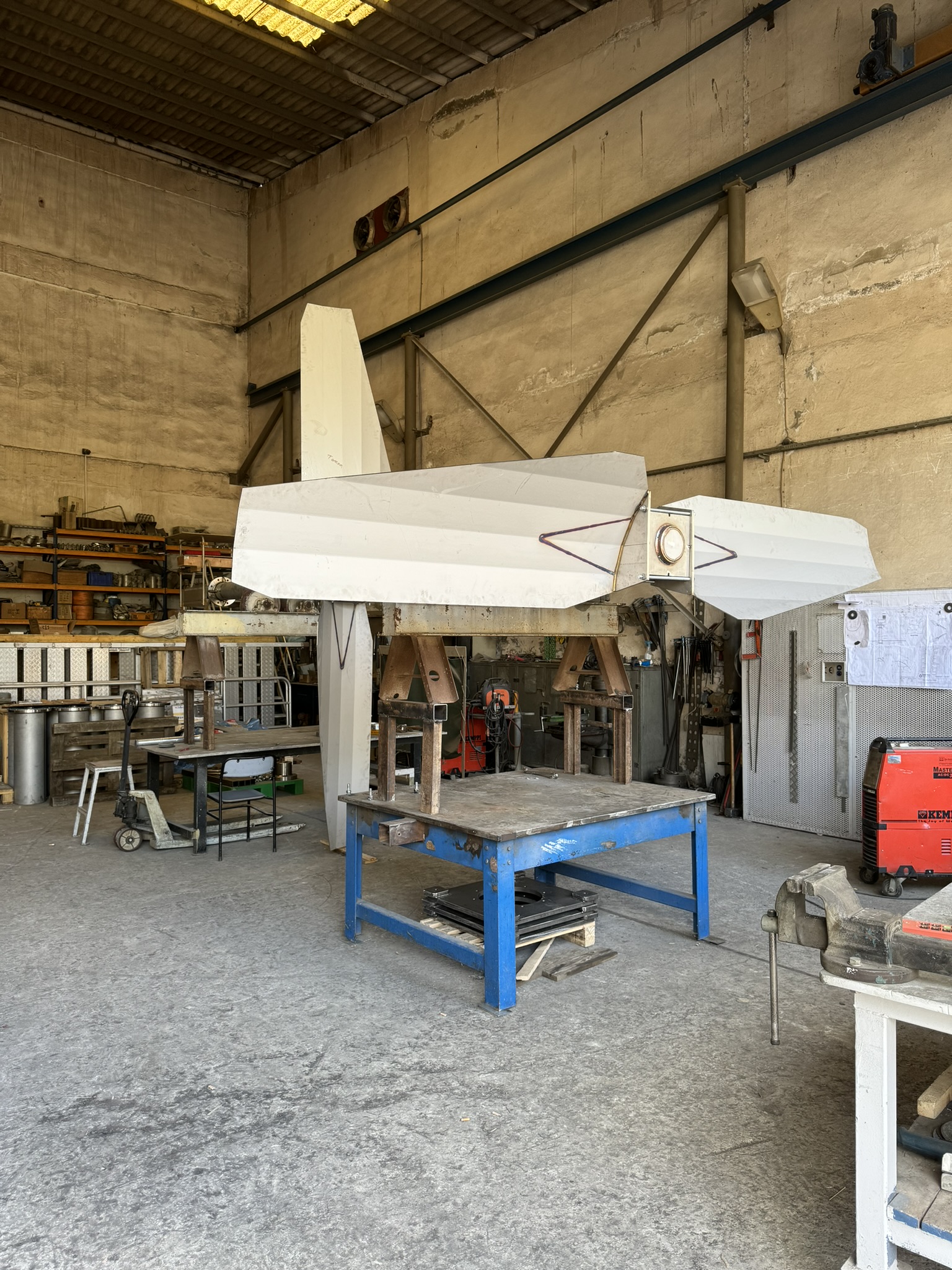

Slow Reaction Mixer - 3 pcs
Type : Vertical shaft, 2 pieces angled blade
Speed : 12 rpm (for G=150)
Dimensions & Materials
Drive unit : Nord Germany SK7382VF VL2‐132MP/4 TF RD
Rigid coupling : Carbon steel / Epoxy coating
Tube Shaft : Ø168,3×7,1mm / AISI 316L
Impeller : Ø4000mm / AISI 316L / 2 pieces

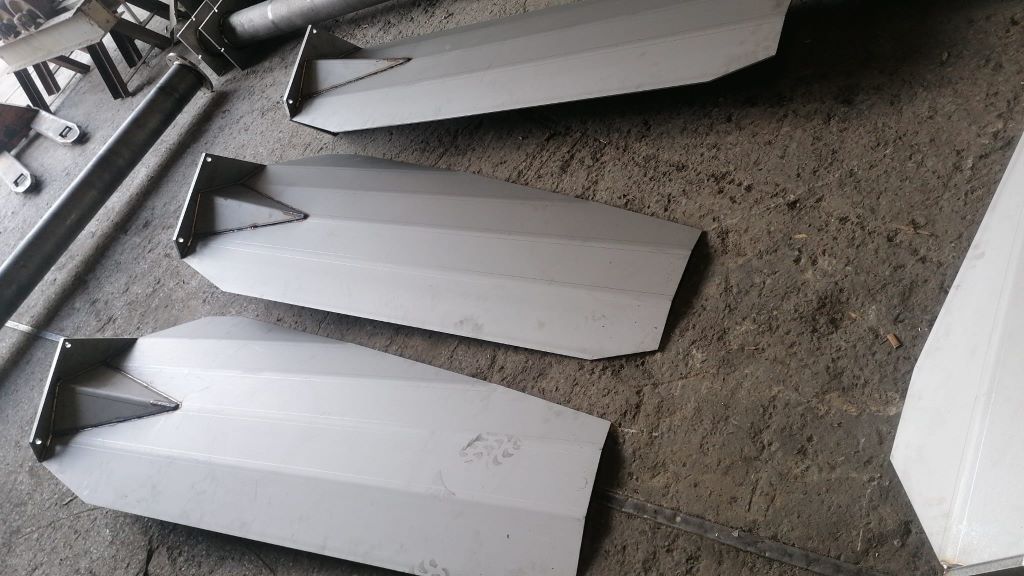

Blades : t = 5mm ‐ 28° to horizontal ‐ 2 blades/imp
Electrical
Electrical Supply : 380 V / 3 phase / 50 Hz
Motor power : 7,5 kW
Protection Class : IP 55
Speed Control (VFD) : Excluded
