Scope of the Project

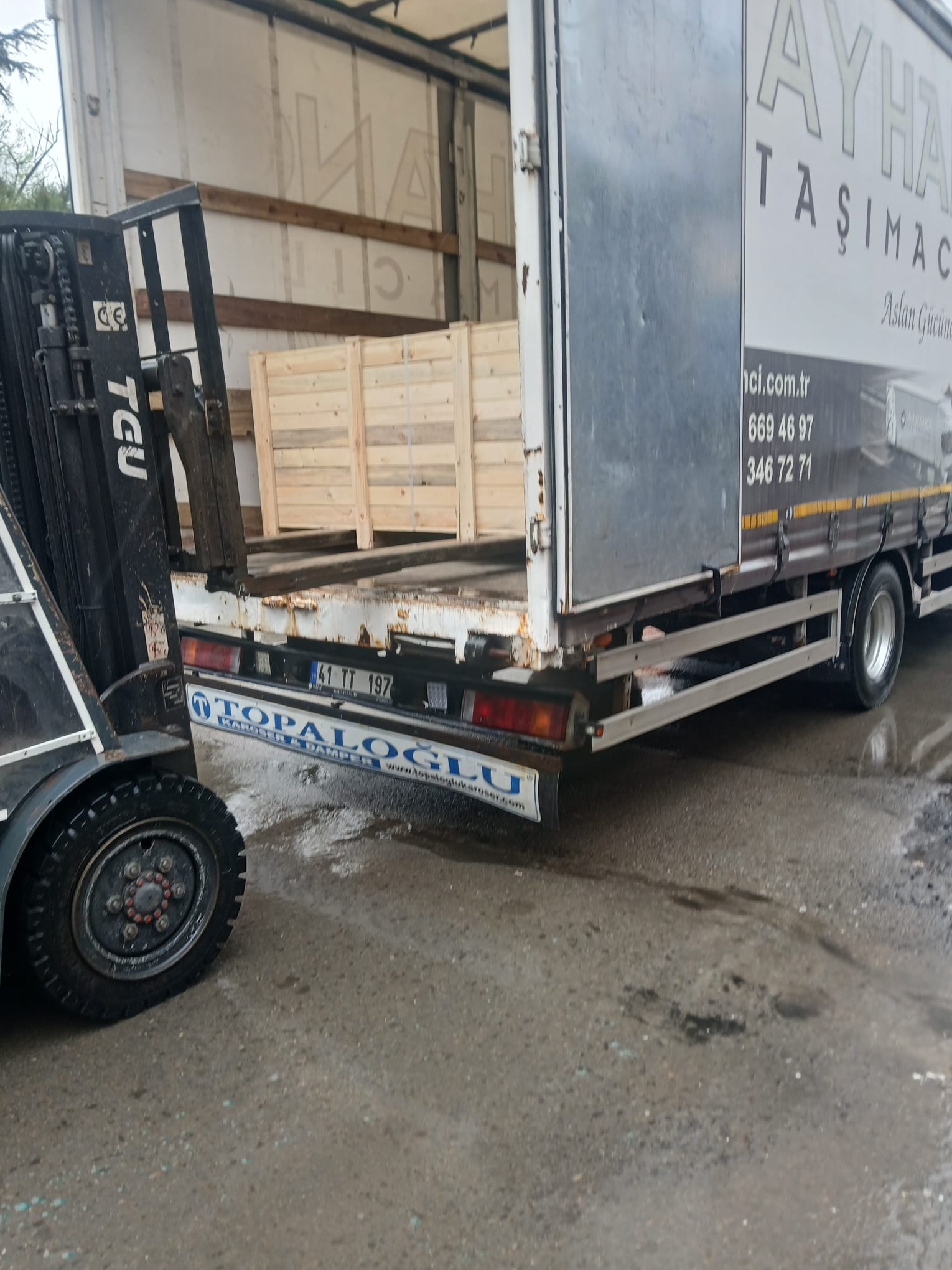

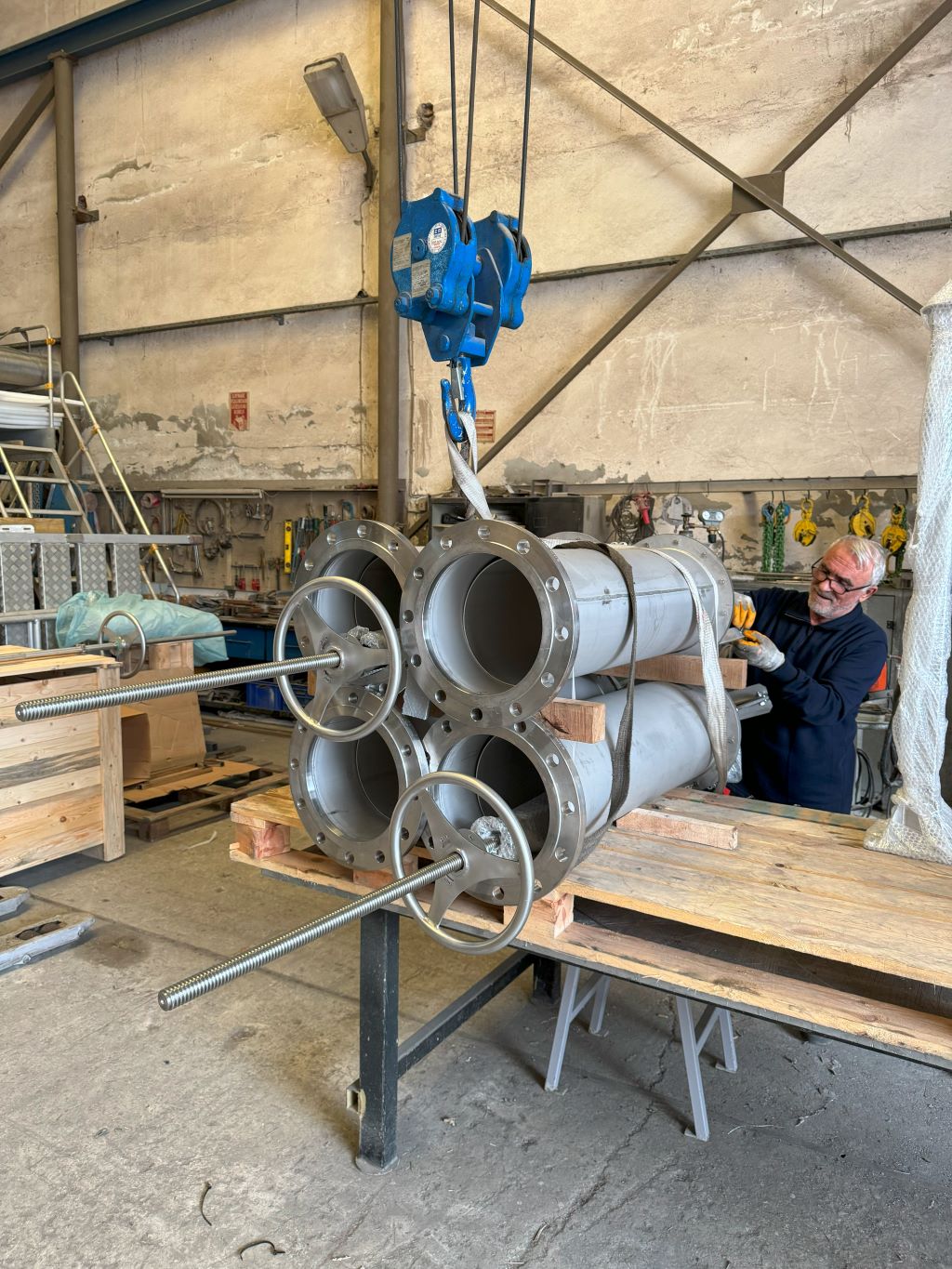

Manufacturing, testing and delivery of telescopic valves to Hong Kong with requested documentation.

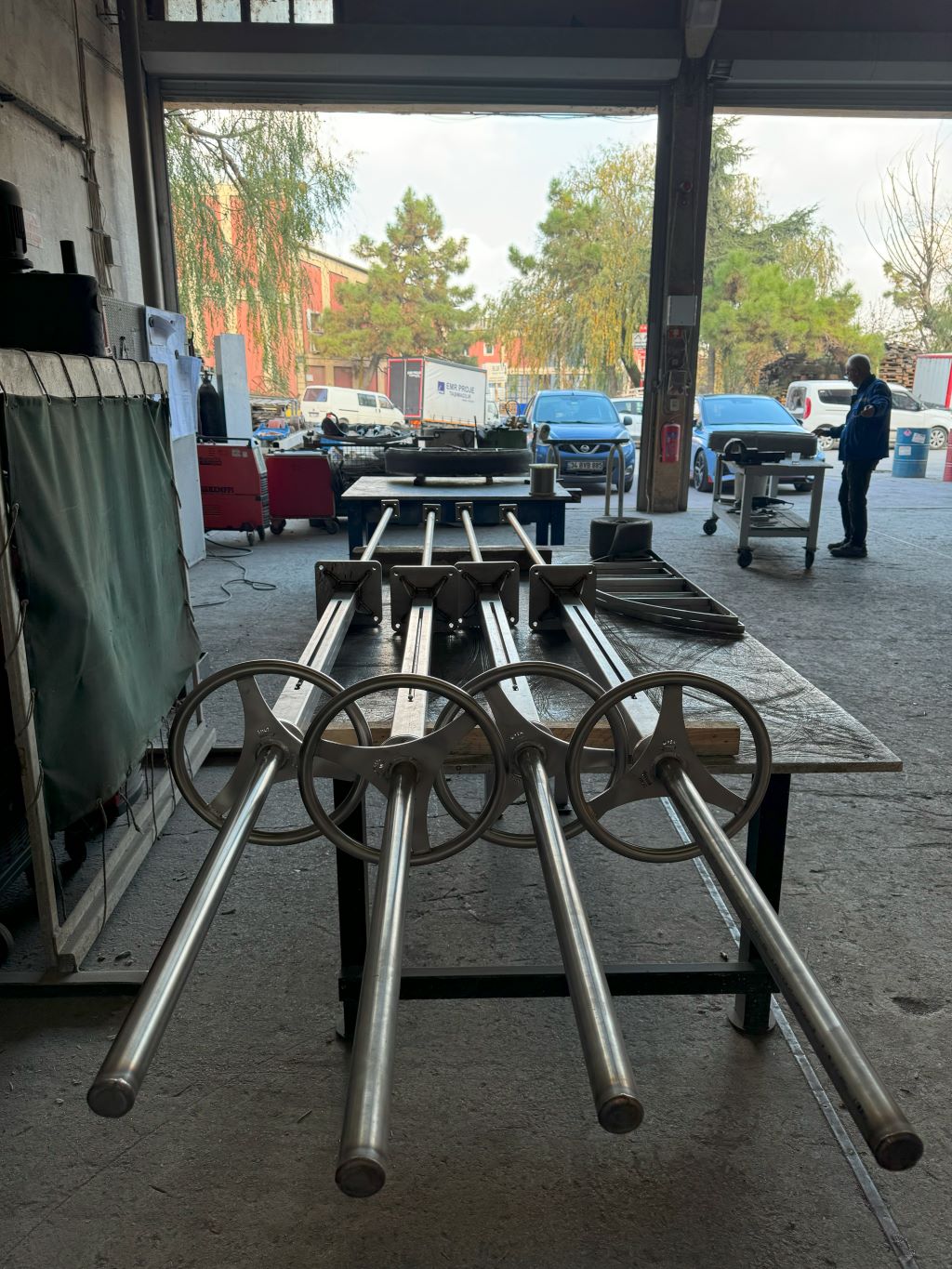

Telescopic Valves DN250 - 4 pcs
Operation : Manual via handwheel & rising spindle
Adjustable range : 700mm

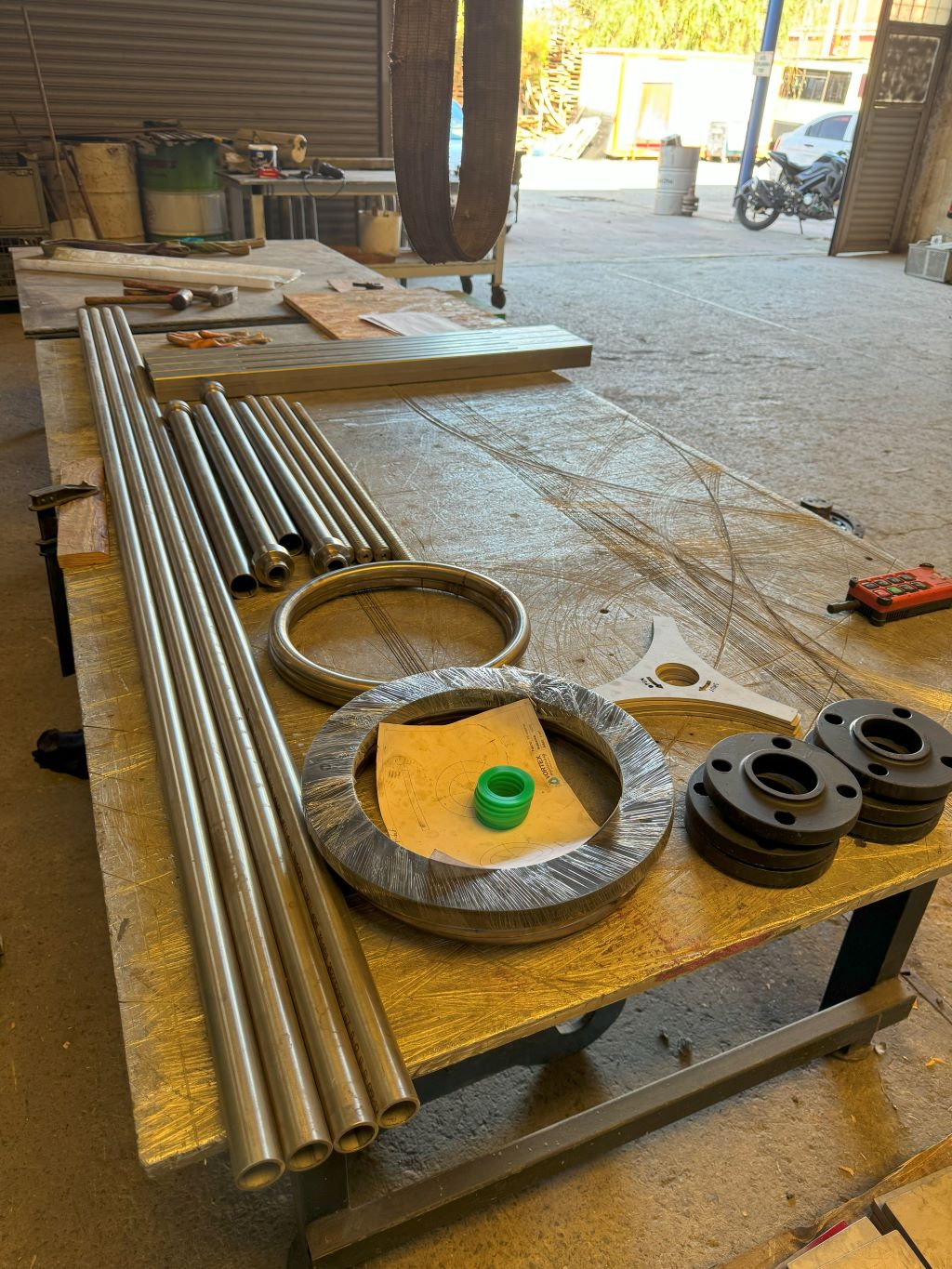

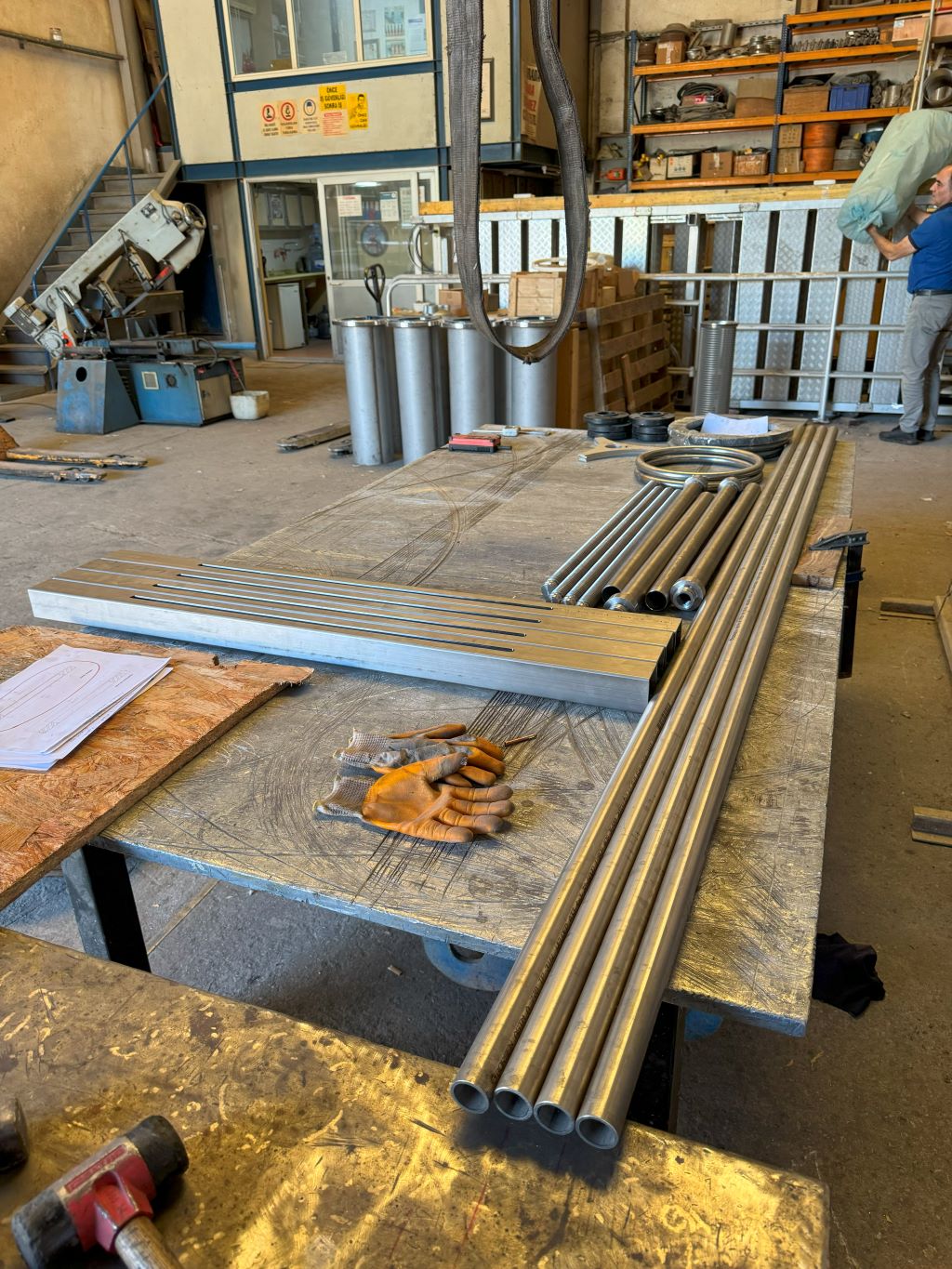

It is mainly consisting of

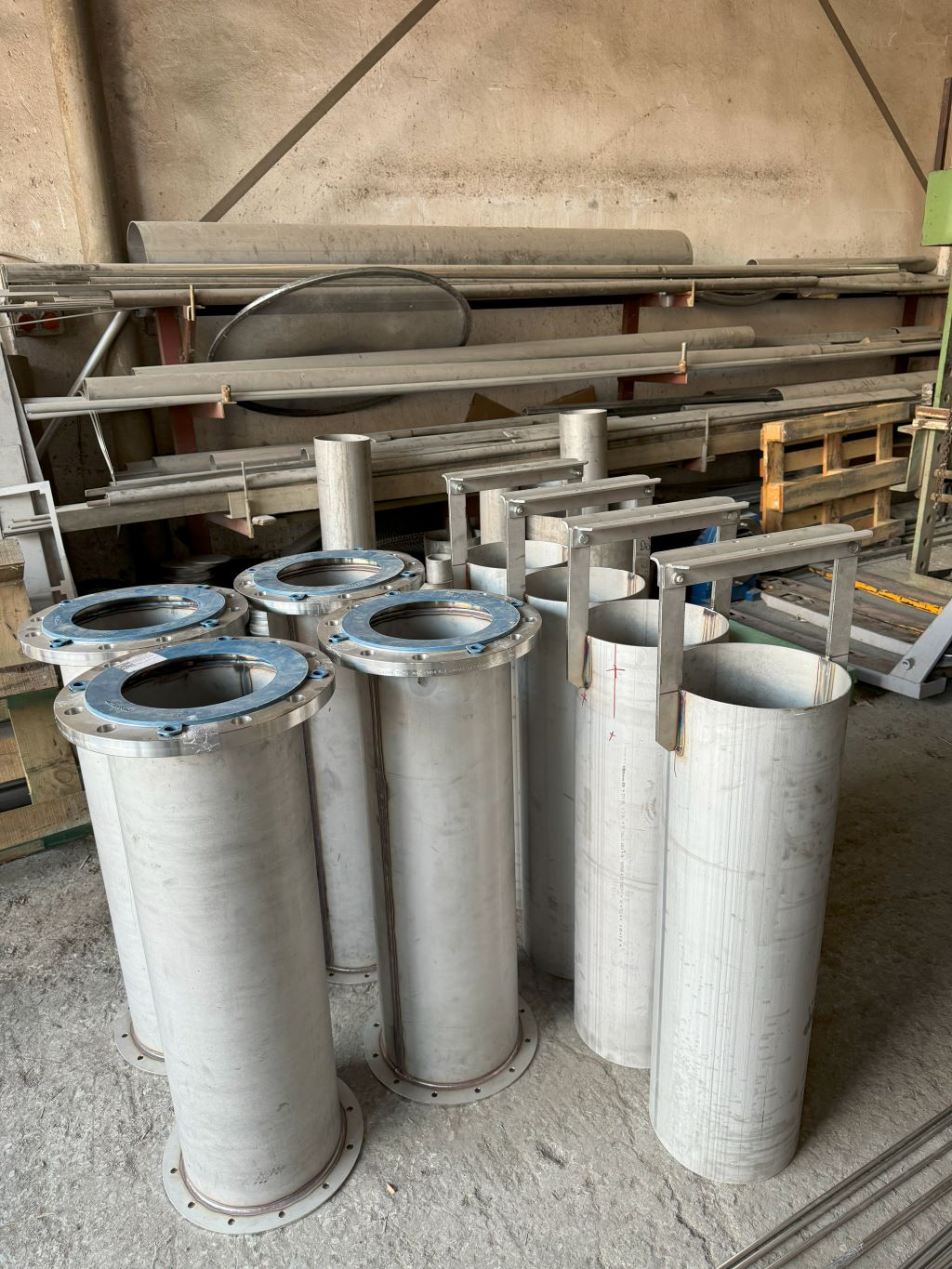

Slip tube : Ø273x3mm L=1000mm AISI 316L
Fixed tube : Ø290x3mm L=1050mm AISI 316L

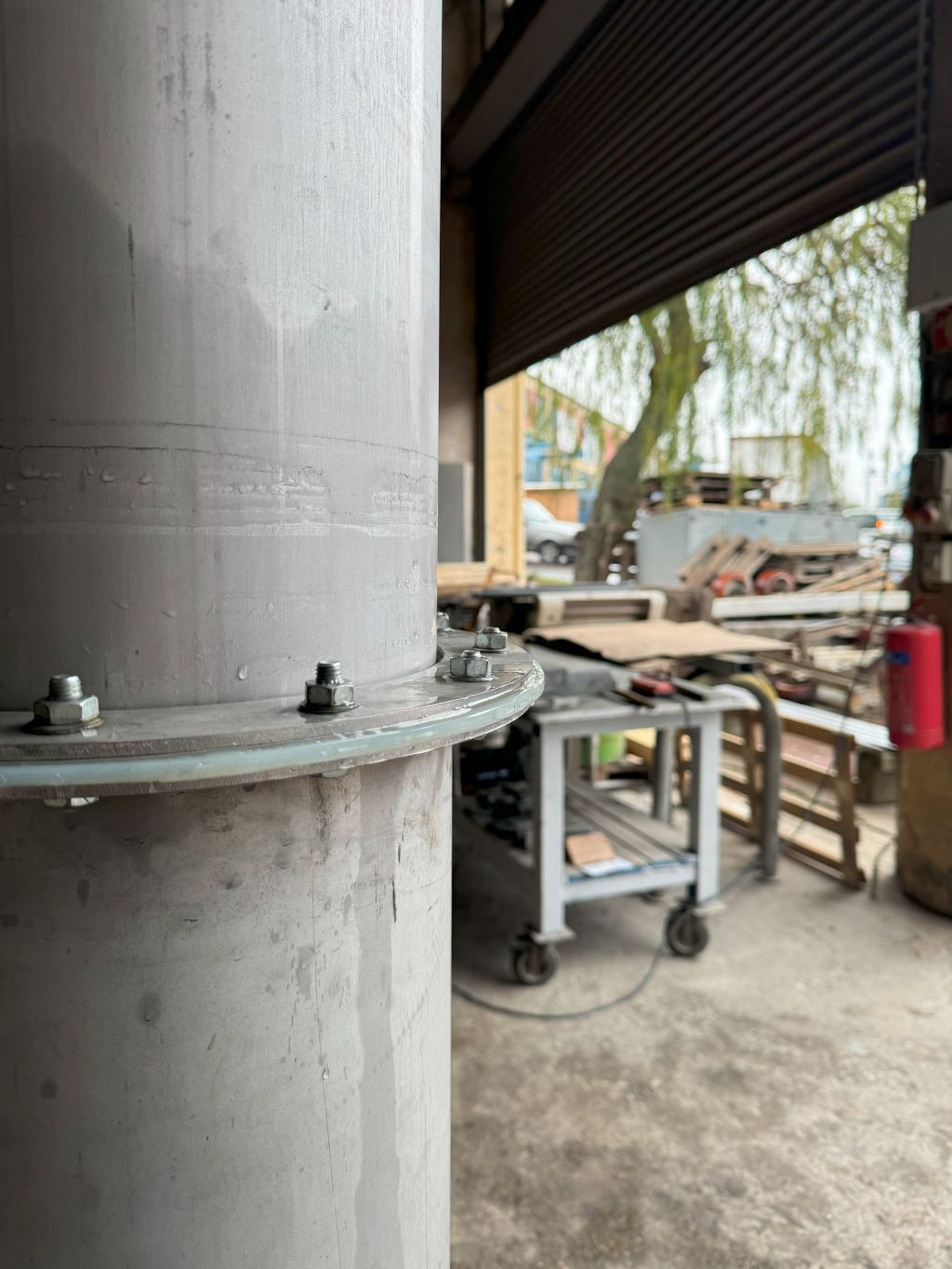

Seal Material: EPDM
Flange : DN250 / PN16

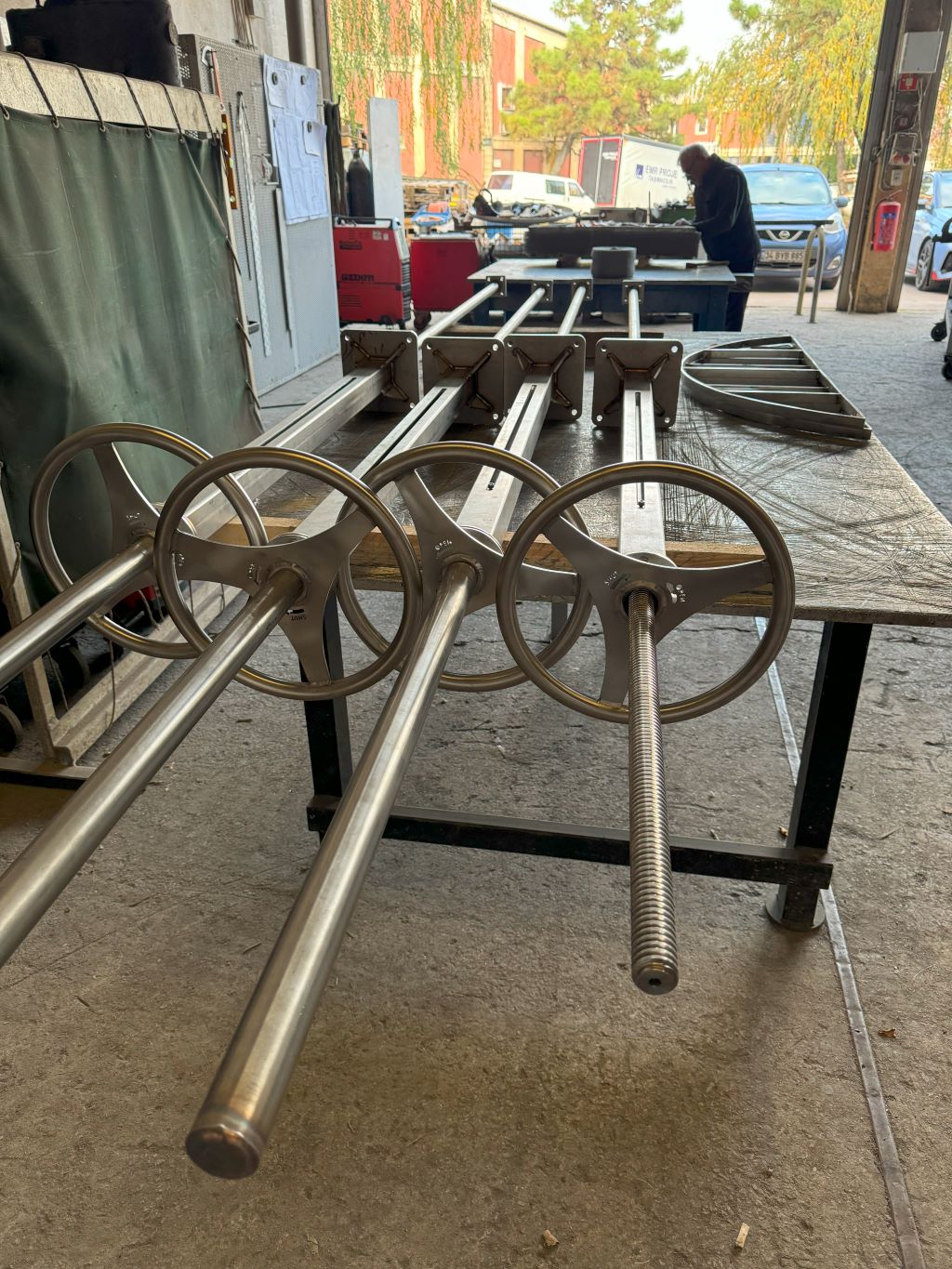

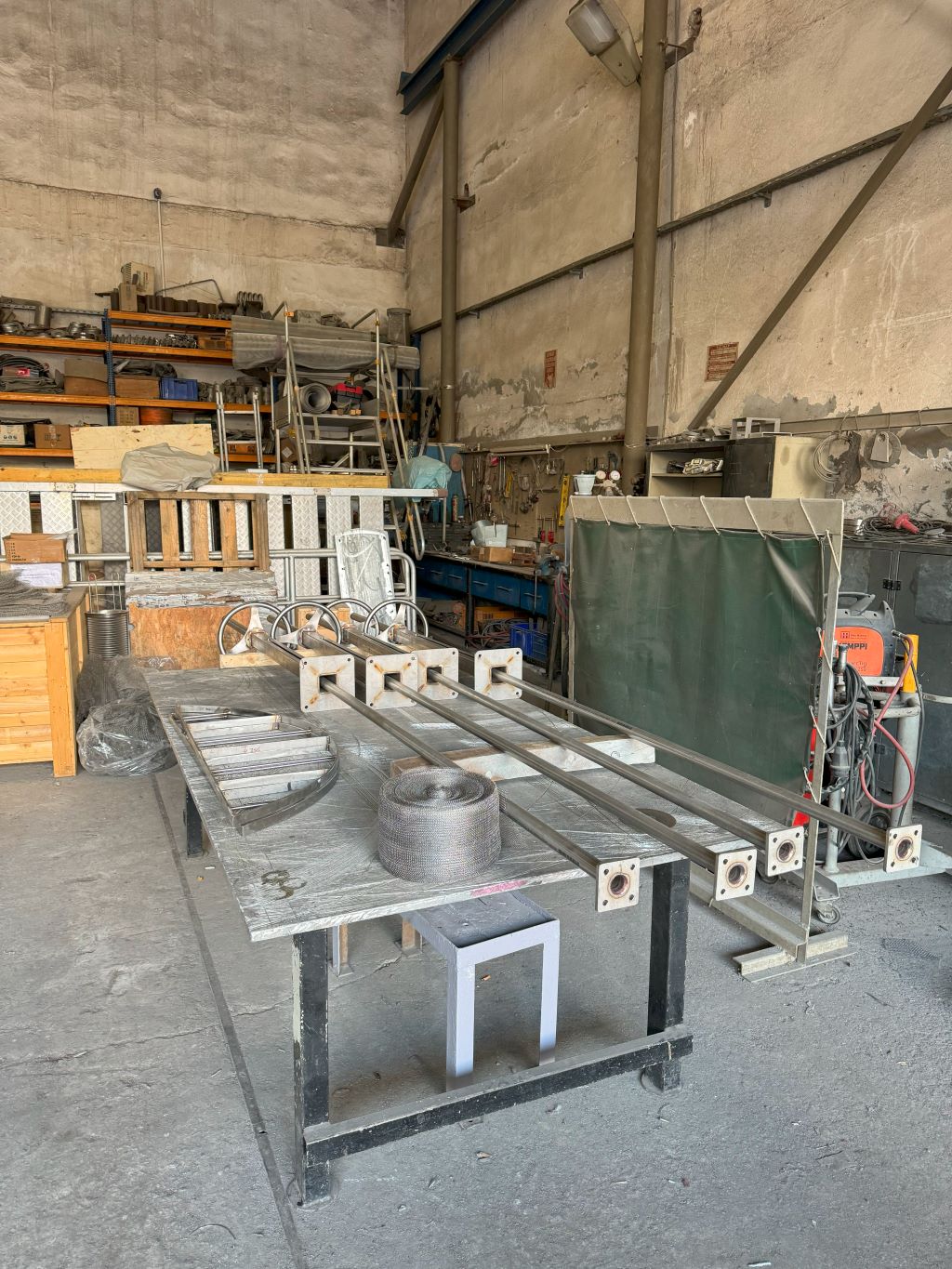

Support : Square tube AISI 316L

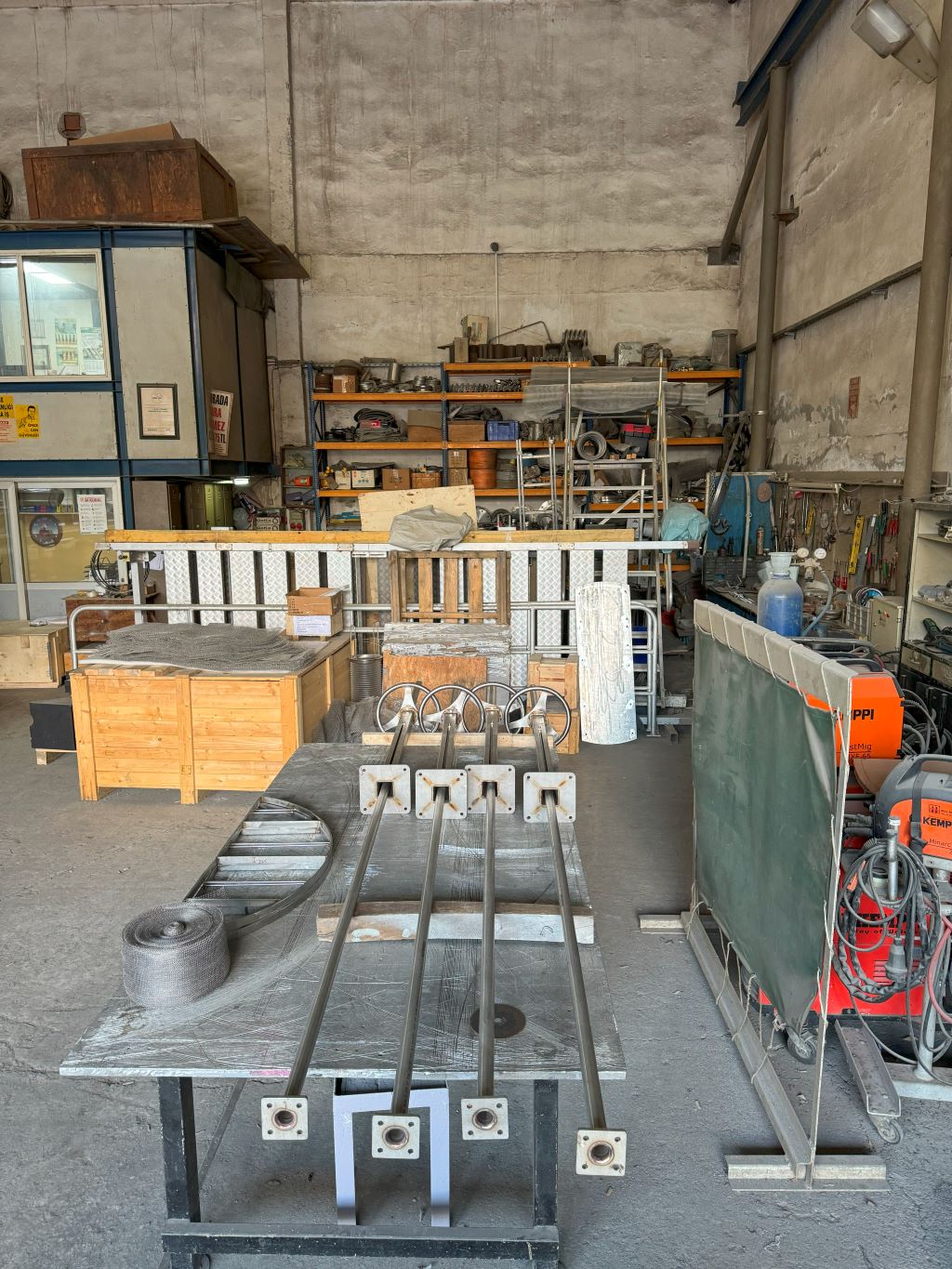

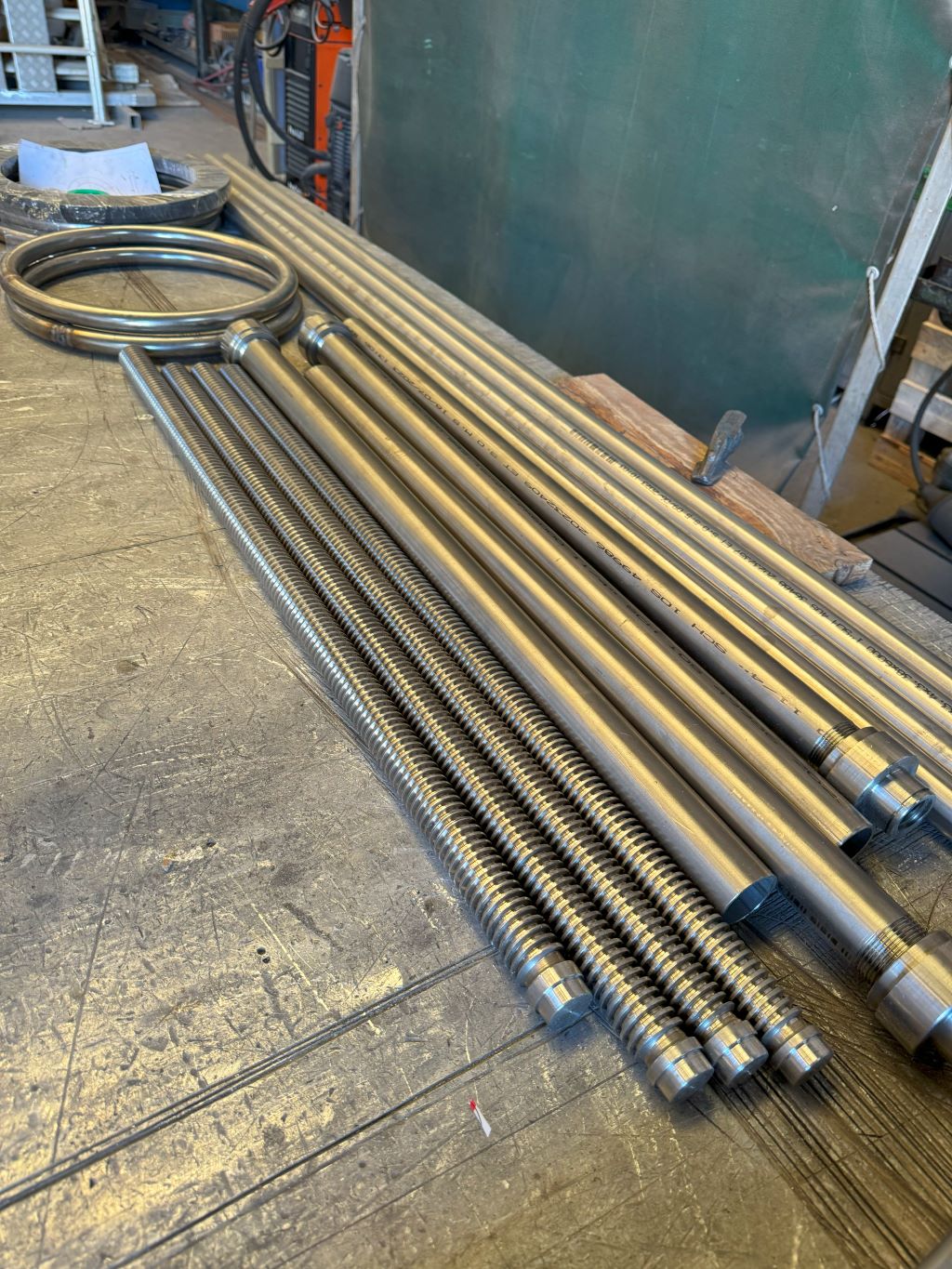

Spindle : Trapezoidal screw AISI 316L
Nut : AISI 316L

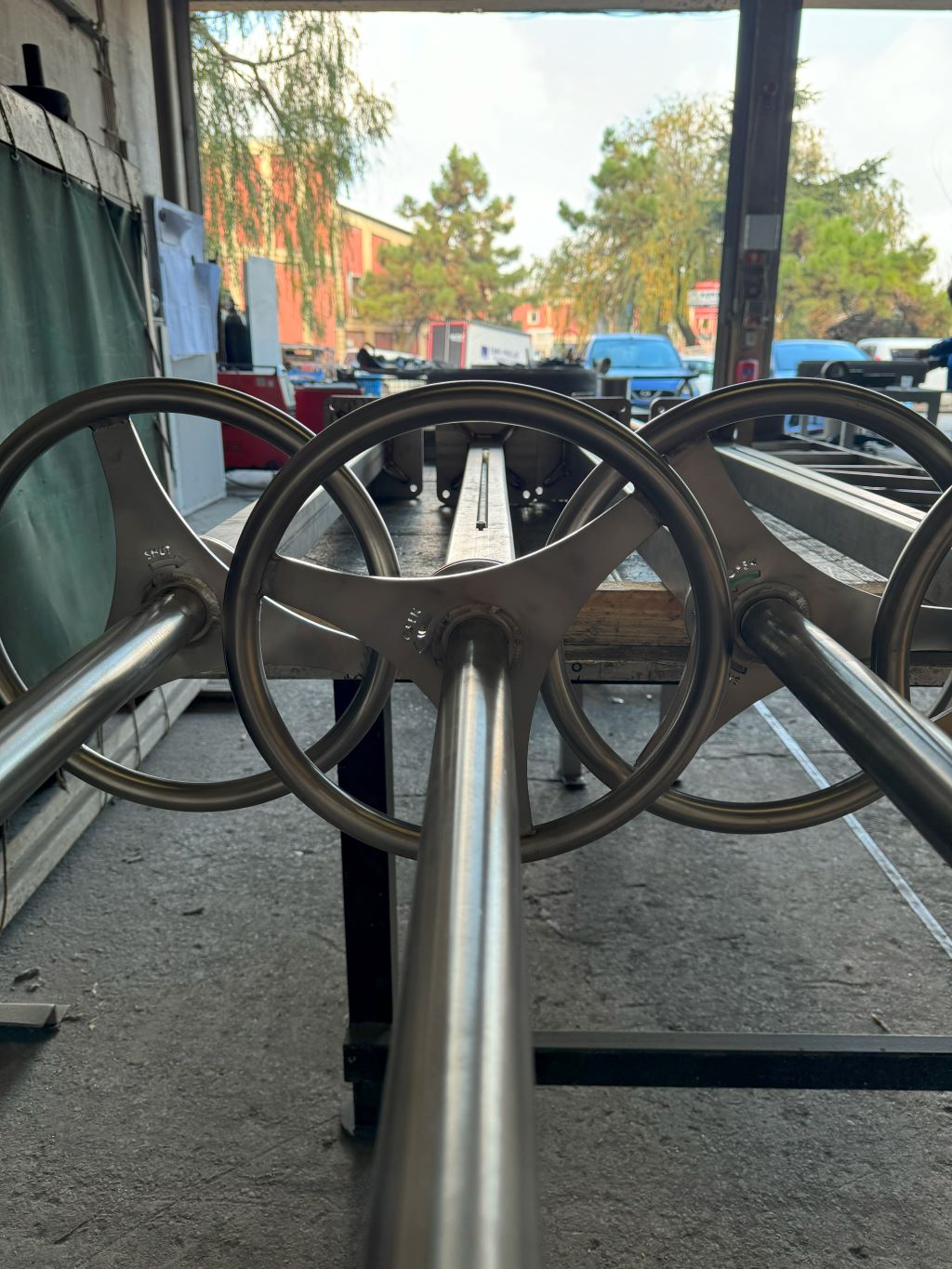

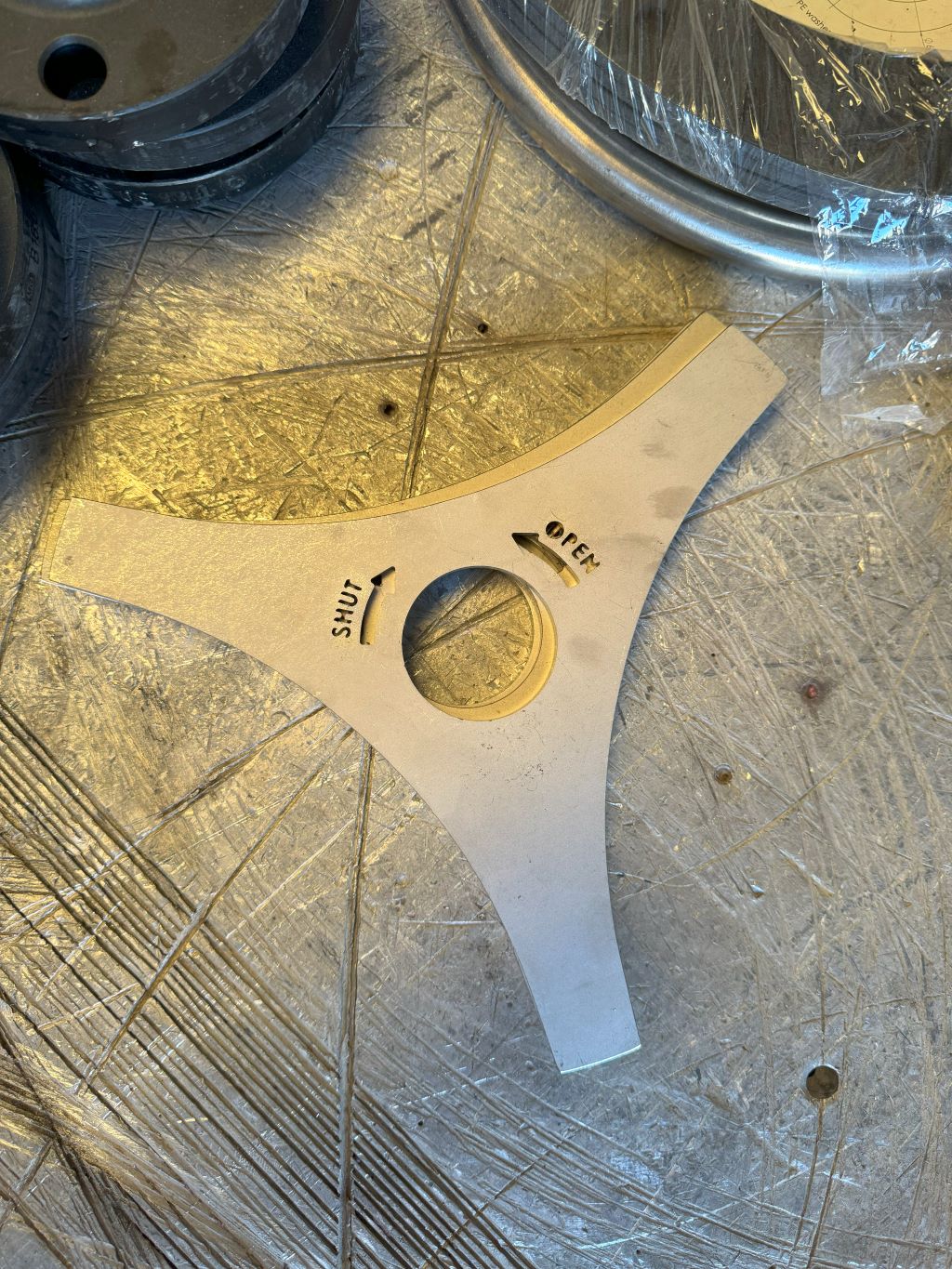

Hand wheel : AISI 316L
